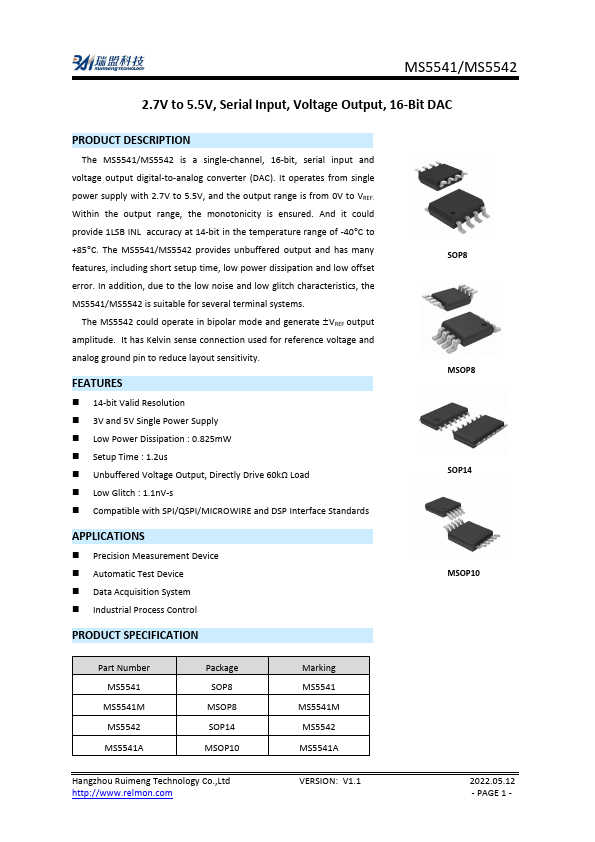

MS5542 Overview
The MS5541/MS5542 is a single-channel, 16-bit, serial input and voltage output digital-to-analog converter (DAC). It operates from single power supply with 2.7V to 5.5V, and the output range is from 0V to VREF. Within the output range, the monotonicity is ensured.
MS5542 Key Features
- 14-bit Valid Resolution
- 3V and 5V Single Power Supply
- Low Power Dissipation : 0.825mW
- Setup Time : 1.2us
- Unbuffered Voltage Output, Directly Drive 60kΩ Load
- Low Glitch : 1.1nV-s
- patible with SPI/QSPI/MICROWIRE and DSP Interface Standards
