MS8091 - 350MHz Rail-to-Rail Operational Amplifier

Description

The MS809x is a rail-to-rail output voltage feedback amplifier with easy use and low cost.

It has many advantages of typical bandwidth and conversion rate derived from current feedback amplifier.

In addition, it has wider common-mode input range and output swing, which makes it easy to operate in 2.

Features

  • of low distortion and fast settling make the MS809x ideal for buffering high-speed ADC or DAC. The power-down feature can reduce the current consumption to 75μA. These features make the MS809x ideal for portable devices and battery-powered.

📥 Download Datasheet

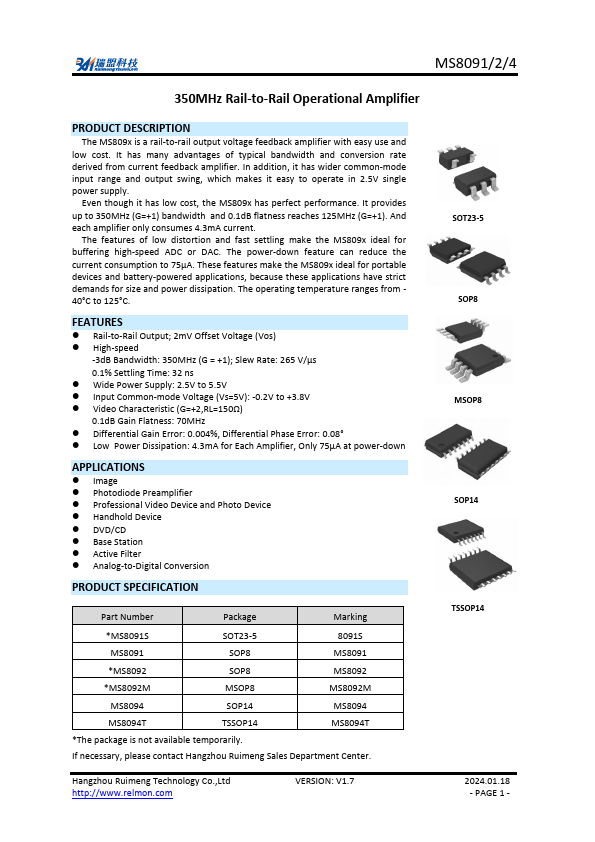

Datasheet preview – MS8091

Datasheet Details

Part number MS8091
Manufacturer Ruimeng
File Size 1.70 MB
Description 350MHz Rail-to-Rail Operational Amplifier
Datasheet download datasheet MS8091 Datasheet

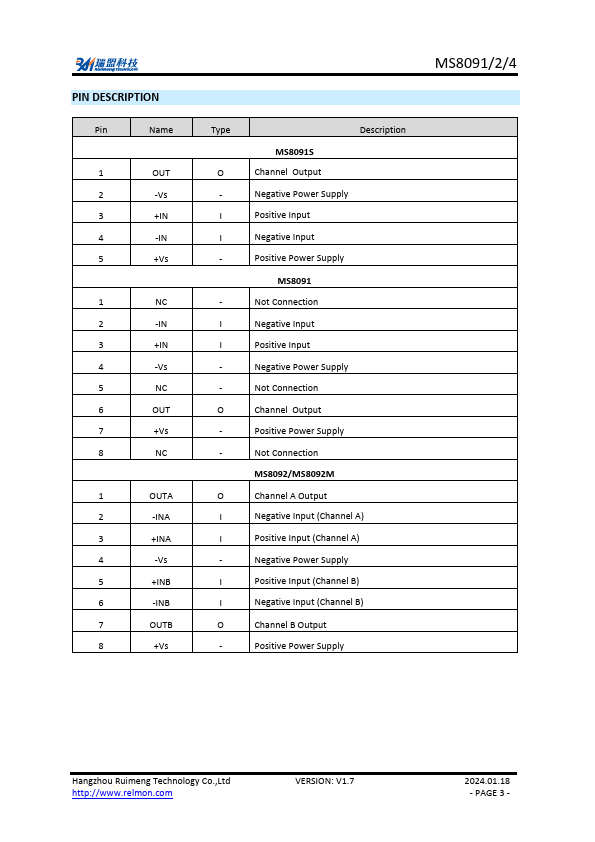

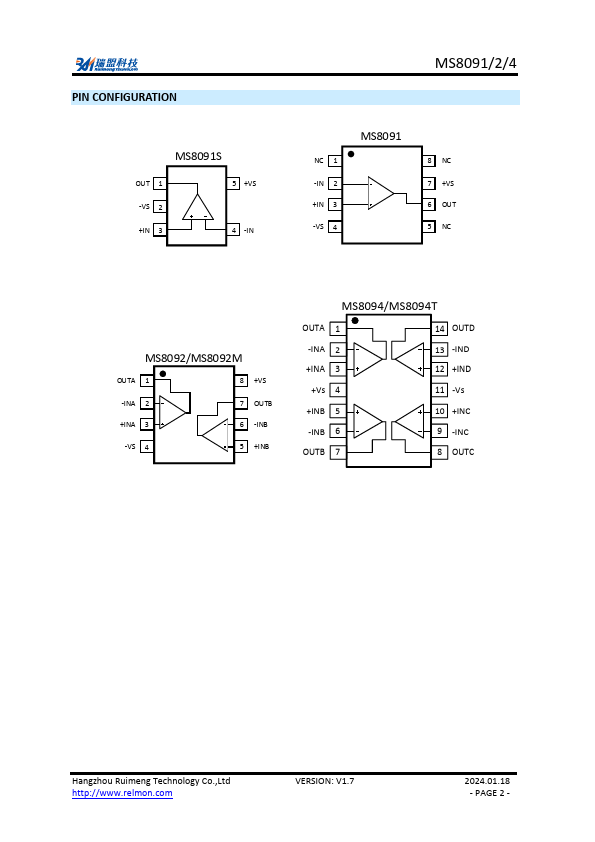

Additional preview pages of the MS8091 datasheet.
