MS8092 - 350MHz Rail-to-Rail Operational Amplifier

This page provides the datasheet information for the MS8092, a member of the MS8091 350MHz Rail-to-Rail Operational Amplifier family.

Description

The MS809x is a rail-to-rail output voltage feedback amplifier with easy use and low cost.

It has many advantages of typical bandwidth and conversion rate derived from current feedback amplifier.

In addition, it has wider common-mode input range and output swing, which makes it easy to operate in 2.

Features

  • of low distortion and fast settling make the MS809x ideal for buffering high-speed ADC or DAC. The power-down feature can reduce the current consumption to 75μA. These features make the MS809x ideal for portable devices and battery-powered.

📥 Download Datasheet

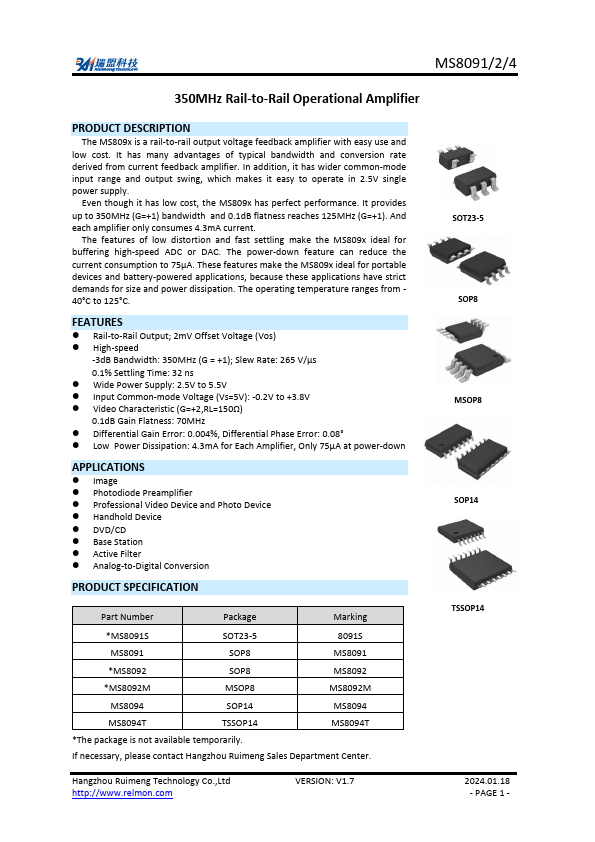

Datasheet preview – MS8092

Datasheet Details

Part number MS8092
Manufacturer Ruimeng
File Size 1.70 MB
Description 350MHz Rail-to-Rail Operational Amplifier
Datasheet download datasheet MS8092 Datasheet

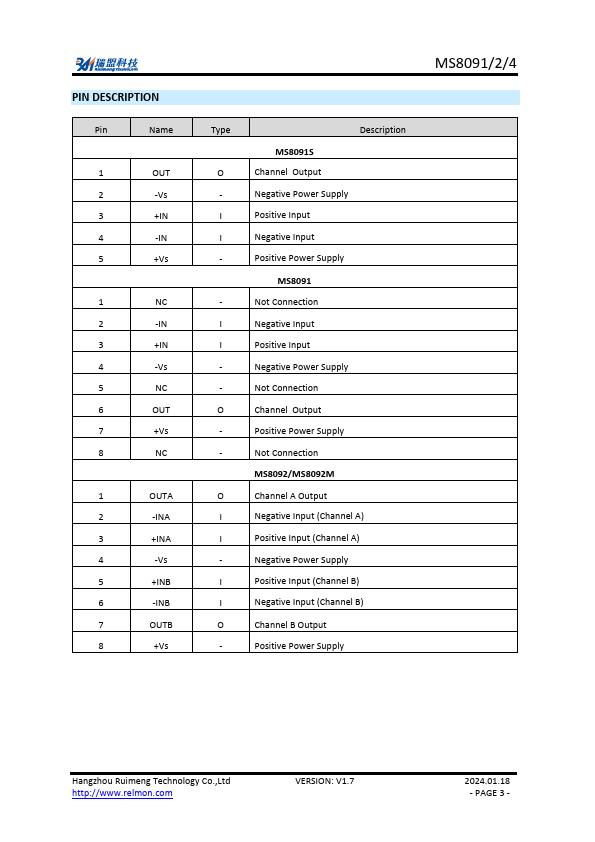

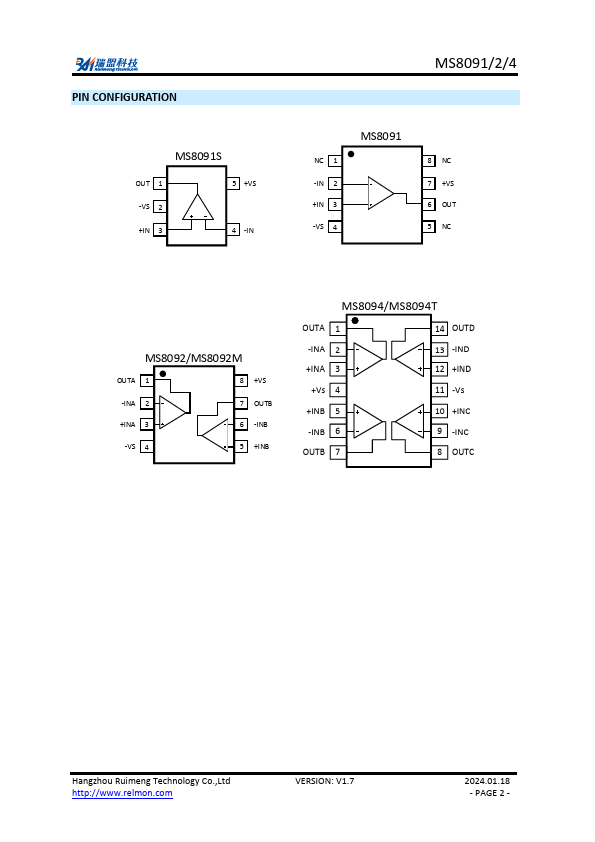

Additional preview pages of the MS8092 datasheet.

📁 Similar Datasheet

  • MS809 - Schottky Diodes (Infineon Technologies)
  • MS80 - Surface Mount Si-Bridge-Rectifiers (Diotec Semiconductor)
  • MS8000 - Single axis analog accelerometer (SAFRAN)
  • MS8001 - GaAs Schottky Diodes (Microsemi)
  • MS8002 - GaAs Schottky Diodes (Microsemi)
  • MS8003 - GaAs Schottky Diodes (Microsemi)
  • MS8004 - GaAs Schottky Diodes (Microsemi)
  • MS808C06 - Schottky Barrier Diode (Fuji Electric)
  • MS8100 - 8 Amp Schottky Rectifier (Microsemi Corporation)
  • MS8100 - (MS820 - MS8100) 8 Amp Schottky Barrier Rectifier (Micro Commercial Components)
Other Datasheets by Ruimeng
  • MS8091 - 350MHz Rail-to-Rail Operational Amplifier
  • MS8093 - 350MHz rail-to-rail operational amplifier
  • MS8094 - 350MHz Rail-to-Rail Operational Amplifier
  • MS8051 - CMOS Operational Amplifier
  • MS8052 - CMOS Operational Amplifier
  • MS8054 - CMOS Operational Amplifier
  • MS8117S - Rail-to-Rail Input and Output Operational Amplifier
  • MS8124N - Four-channel ground isolation amplifier

Full PDF Text Transcription

Click to expand full text
MS8091/2/4 350MHz Rail-to-Rail Operational Amplifier PRODUCT DESCRIPTION The MS809x is a rail-to-rail output voltage feedback amplifier with easy use and low cost. It has many advantages of typical bandwidth and conversion rate derived from current feedback amplifier. In addition, it has wider common-mode input range and output swing, which makes it easy to operate in 2.5V single power supply. Even though it has low cost, the MS809x has perfect performance. It provides up to 350MHz (G=+1) bandwidth and 0.1dB flatness reaches 125MHz (G=+1). And each amplifier only consumes 4.3mA current. The features of low distortion and fast settling make the MS809x ideal for buffering high-speed ADC or DAC. The power-down feature can reduce the current consumption to 75μA.
