MS8094 Datasheet 350MHz Rail-to-Rail Operational Amplifier

Manufacturer: Ruimeng

Download the MS8094 datasheet PDF. This datasheet also includes the MS8091 variant, as both parts are published together in a single manufacturer document.

📥 Download Datasheet

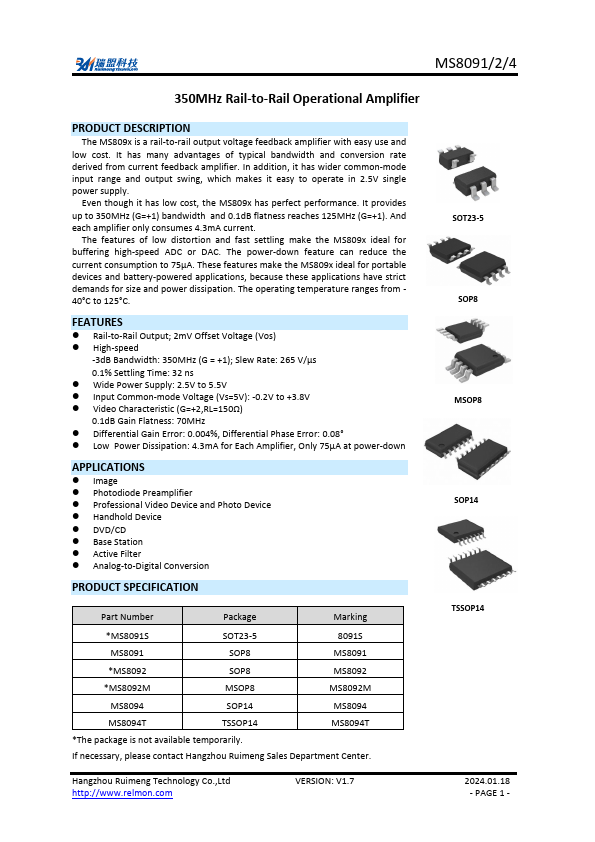

MS8094 350mhz rail-to-rail operational amplifier by Ruimeng - Datasheet Preview — Note: The manufacturer provides a single datasheet file (MS8091-Ruimeng.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	MS8094
Manufacturer	Ruimeng
File Size	1.70 MB
Description	350MHz Rail-to-Rail Operational Amplifier
Download	MS8094 Download (PDF)

General Description

The MS809x is a rail-to-rail output voltage feedback amplifier with easy use and low cost.

It has many advantages of typical bandwidth and conversion rate derived from current feedback amplifier.

In addition, it has wider common-mode input range and output swing, which makes it easy to operate in 2.5V single power supply.

Overview

MS8091/2/4 350MHz Rail-to-Rail Operational Amplifier PRODUCT.

Key Features

of low distortion and fast settling make the MS809x ideal for buffering high-speed ADC or DAC. The power-down feature can reduce the current consumption to 75μA. These features make the MS809x ideal for portable devices and battery-powered.
