MS8619 - Rail-to-Rail Input and Output Operational Amplifier

Product Overview

Ruimeng

📥 Download Datasheet

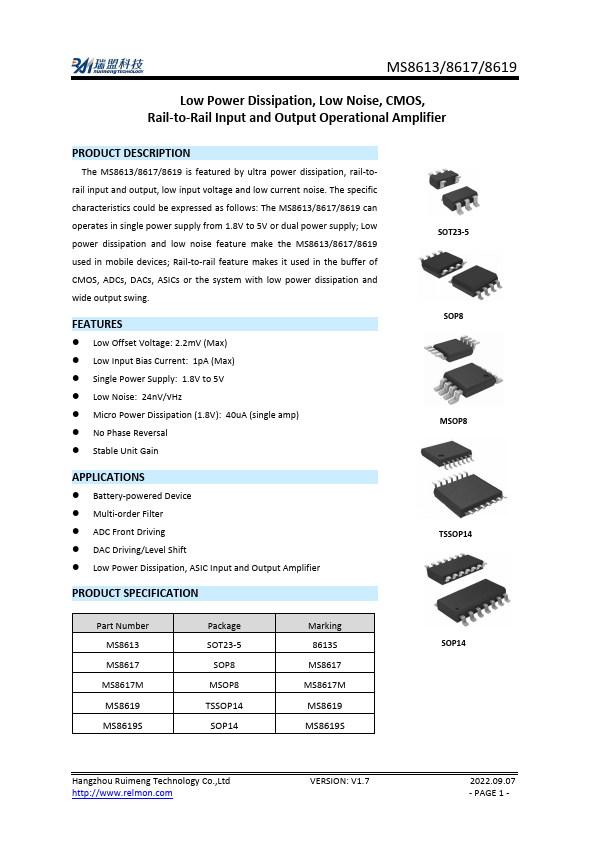

MS8619 Rail-to-Rail Input and Output Operational Amplifier by Ruimeng - Datasheet Preview — Datasheet preview – MS8619

Datasheet Details

Part number	MS8619
Manufacturer	Ruimeng
File Size	0.97 MB
Description	Rail-to-Rail Input and Output Operational Amplifier
Datasheet	MS8619 Datasheet
Note	This datasheet PDF includes multiple part numbers: MS8619, MS8613. Please refer to the document for exact specifications by model.

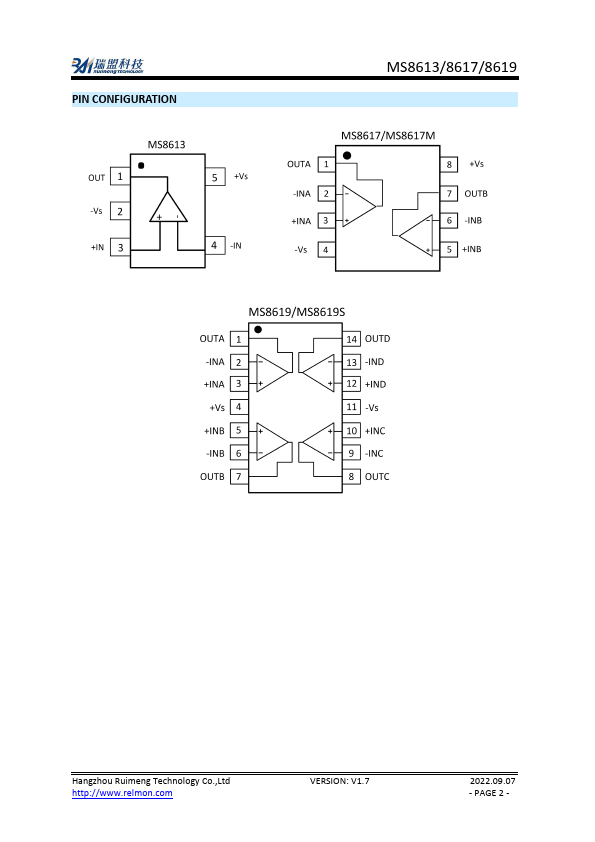

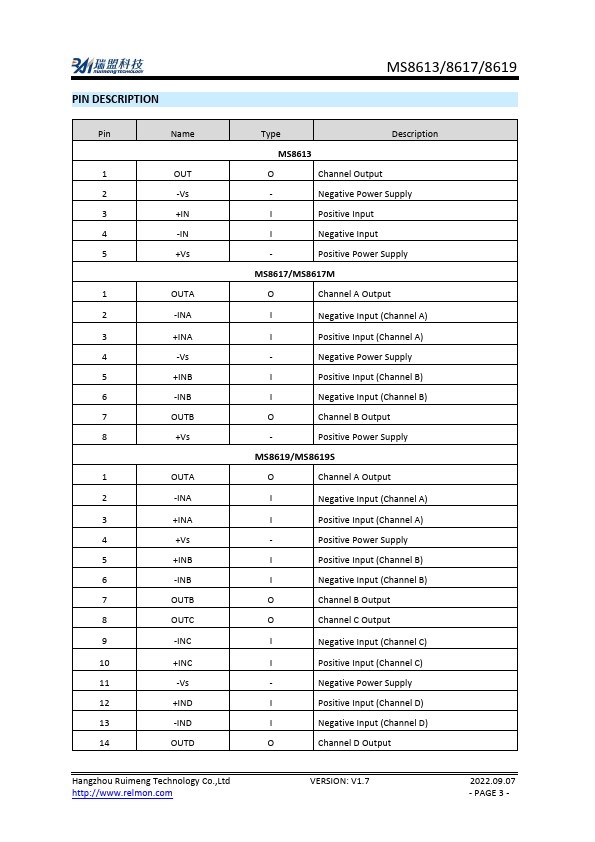

Additional preview pages of the MS8619 datasheet.

Product details

Description

The MS8613/8617/8619 is featured by ultra power dissipation, rail-torail input and output, low input voltage and low current noise.

Features

Low Offset Voltage: 2.2mV (Max).
Low Input Bias Current: 1pA (Max).
Single Power Supply: 1.8V to 5V.
Low Noise: 24nV/√Hz.
Micro Power Dissipation (1.8V): 40uA (single amp).
No Phase Reversal.
Stable Unit Gain.
