LTN170X2-L02 - LCD

Datasheet Summary

Description

1.

2.

3.

Features

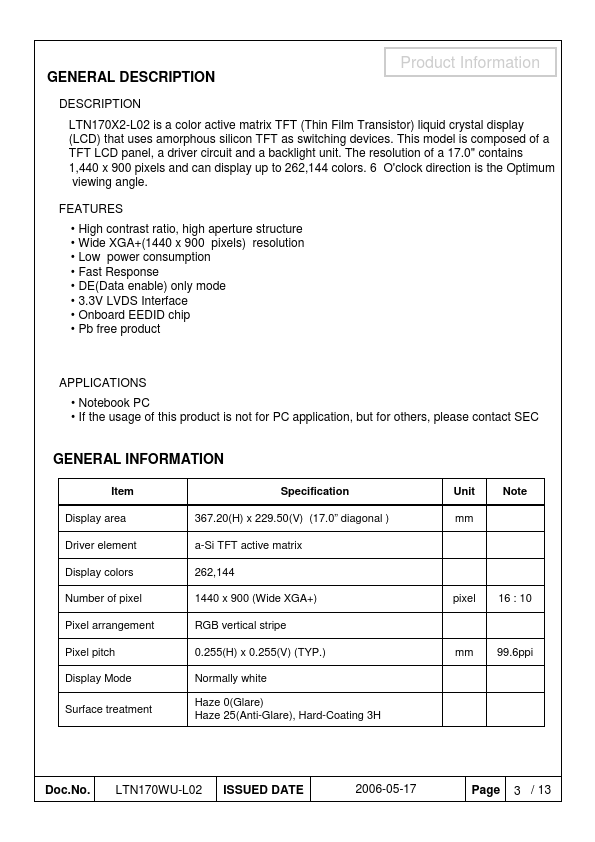

  • High contrast ratio, high aperture structure.
  • Wide XGA+(1440 x 900 pixels) resolution.
  • Low power consumption.
  • Fast Response.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • Pb free product.

📥 Download Datasheet

Datasheet preview – LTN170X2-L02

Datasheet Details

Part number LTN170X2-L02
Manufacturer SAMSUNG
File Size 193.18 KB
Description LCD
Datasheet download datasheet LTN170X2-L02 Datasheet
Additional preview pages of the LTN170X2-L02 datasheet.

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by SAMSUNG

Full PDF Text Transcription

Click to expand full text

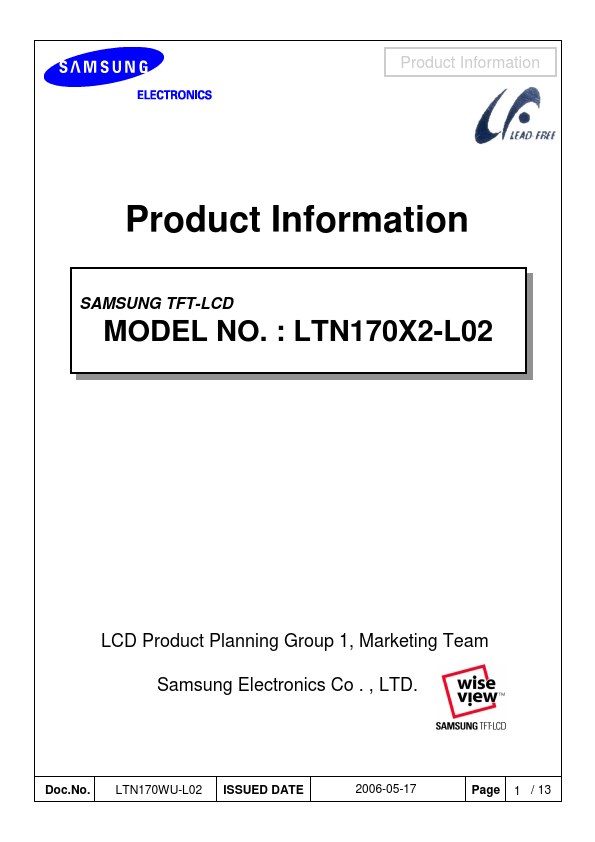

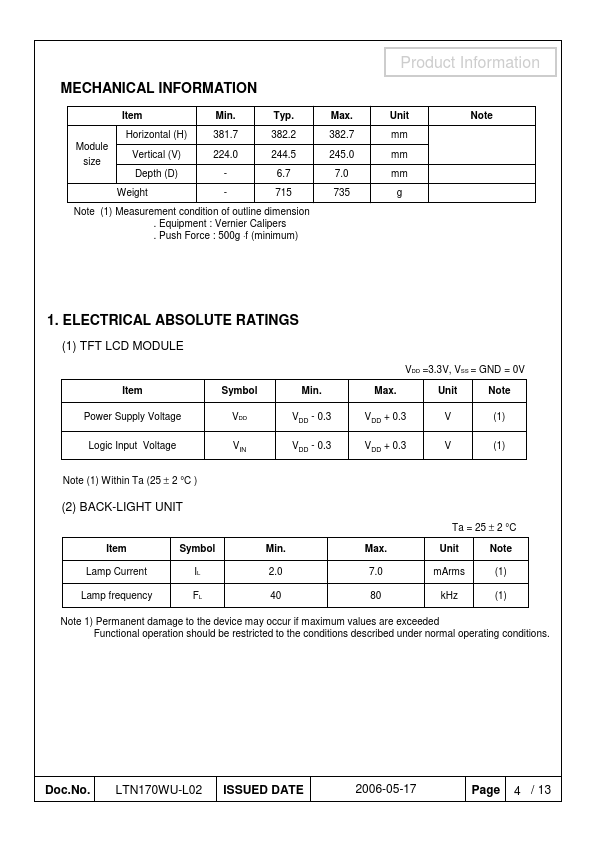

Product Information Product Information SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN170X2-L02 LTN170X2-L02 www.DataSheet4U.com LCD Product Planning Group 1, Marketing Team Samsung Electronics Co . , LTD. Doc.No. LTN170WU-L02 ISSUED DATE 2006-05-17 Page 1 / 13 Product Information CONTENTS General Description -------------------( 3 ) 1. Electrical Absolute Ratings -------------------( 4 ) 2. Optical Characteristics -------------------( 5 ) 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit -------------------( 6 ) 4. Block Diagram 4.1 TFT LCD Module 4.2 Backlight Unit -------------------( 7 ) 5. Input Terminal Pin Assignment -------------------( 8 ) 5.1 Input Signal & Power 5.2 Backlight Unit 5.
