STM32H742VI - 32-bit Arm Cortex-M7 480MHz MCUs

Product Overview

STMicroelectronics

Part number	STM32H742VI
Manufacturer	STMicroelectronics
File Size	7.00 MB
Description	32-bit Arm Cortex-M7 480MHz MCUs
Datasheet	STM32H742VI Datasheet

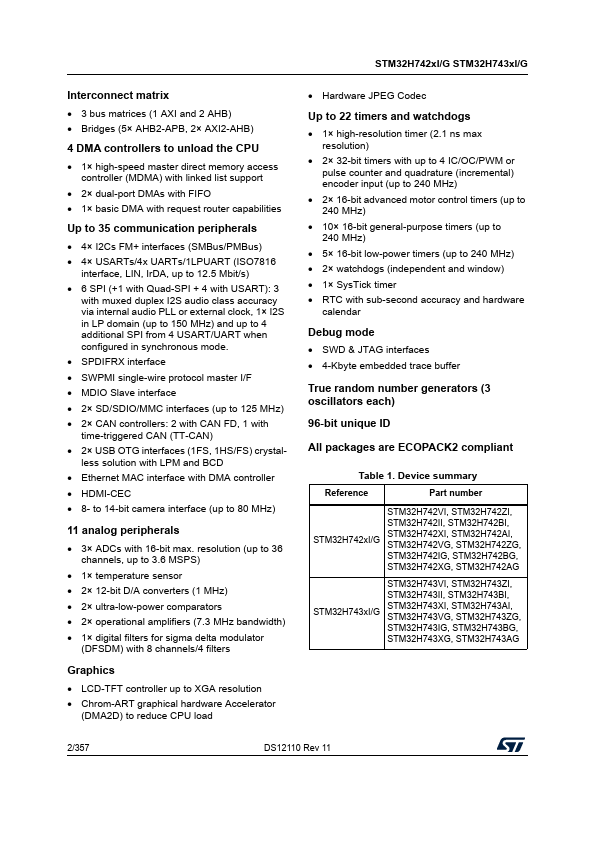

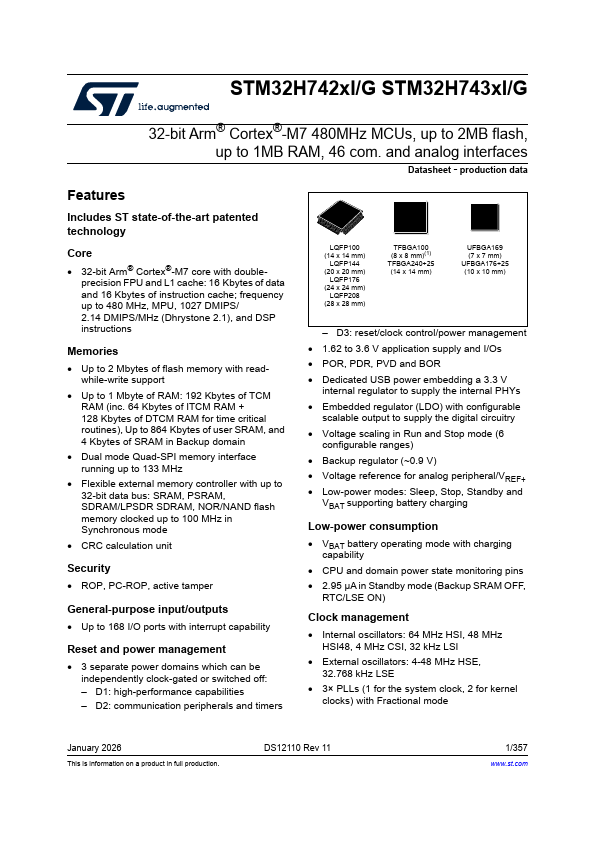

Additional preview pages of the STM32H742VI datasheet.

Includes ST state-of-the-art patented technology Core.
32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
Up to 2 Mbytes of flash memory with readwhile-write support.
Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to.
