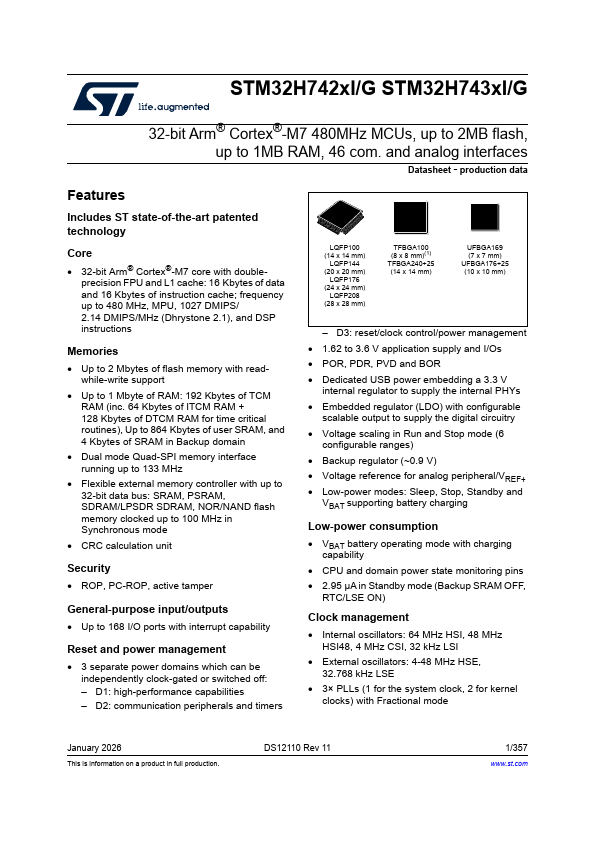

STM32H742ZI Datasheet 32-bit Arm Cortex-m7 480mhz Mcus

Manufacturer: STMicroelectronics

Overview: STM32H742xI/G STM32H743xI/G 32-bit Arm® Cortex®-M7 480MHz MCUs, up to 2MB flash, up to 1MB RAM, 46 com.

This datasheet includes multiple variants, all published together in a single manufacturer document.

Key Features

  • Includes ST state-of-the-art patented technology Core.
  • 32-bit Arm® Cortex®-M7 core with doubleprecision FPU and L1 cache: 16 Kbytes of data and 16 Kbytes of instruction cache; frequency up to 480 MHz, MPU, 1027 DMIPS/ 2.14 DMIPS/MHz (Dhrystone 2.1), and DSP instructions Memories.
  • Up to 2 Mbytes of flash memory with readwhile-write support.
  • Up to 1 Mbyte of RAM: 192 Kbytes of TCM RAM (inc. 64 Kbytes of ITCM RAM + 128 Kbytes of DTCM RAM for time critical routines), Up to.
