LTN160AT02 - LCD

Description

1.

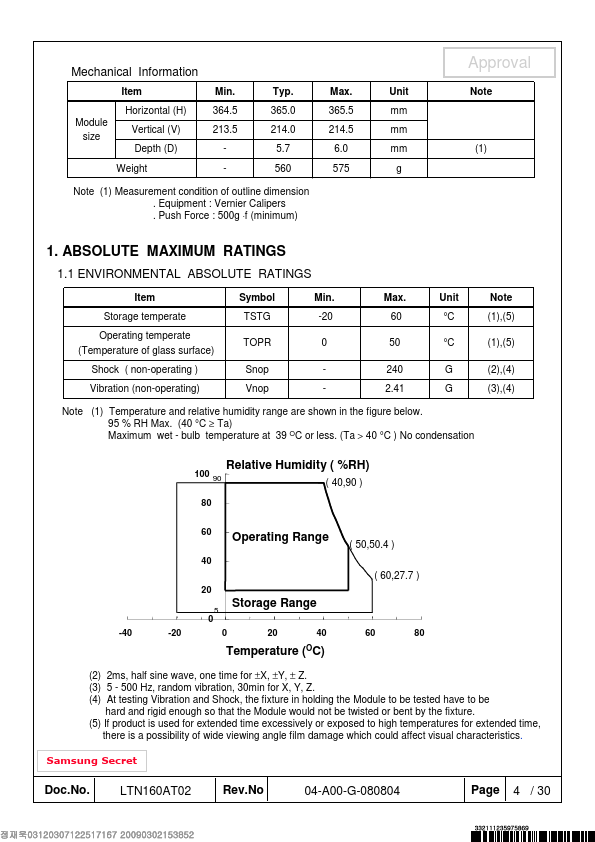

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

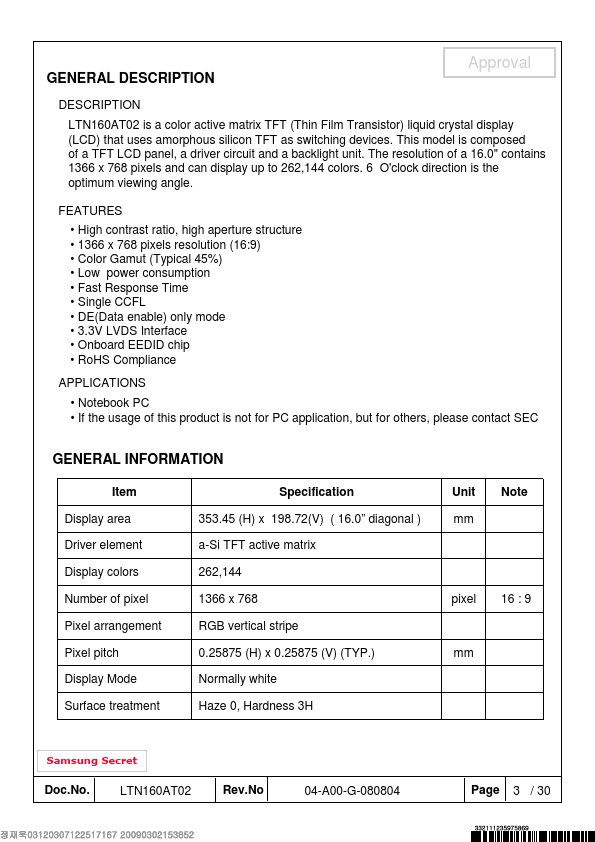

  • High contrast ratio, high aperture structure.
  • 1366 x 768 pixels resolution (16:9).
  • Color Gamut (Typical 45%).
  • Low power consumption.
  • Fast Response Time.
  • Single CCFL.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • RoHS Compliance.

📥 Download Datasheet

Datasheet preview – LTN160AT02

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

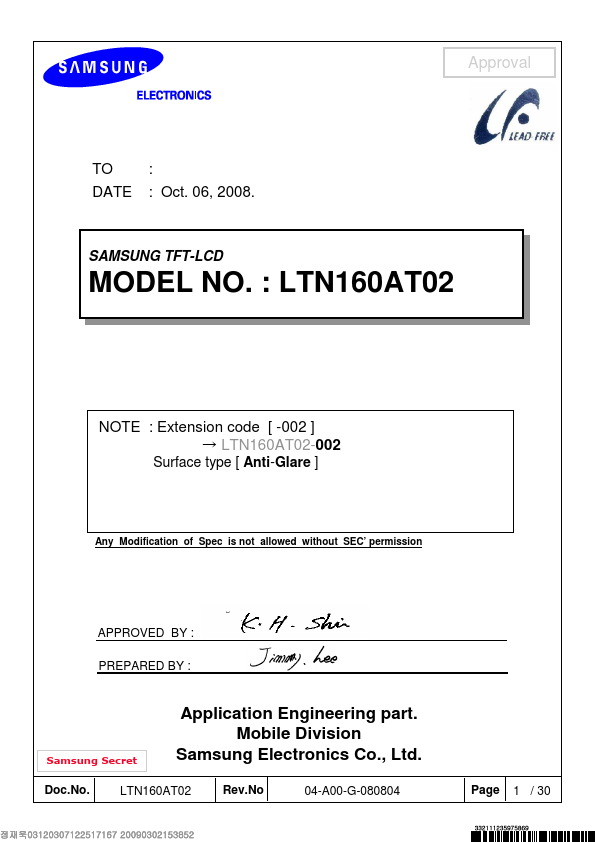

Approval TO DATE : : Oct. 06, 2008. SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN160AT02 LTN160AT02 NOTE : Extension code [ -002 ] → LTN160AT02-002 www.DataSheet.net/ Surface type [ Anti-Glare ] Any Modification of Spec is not allowed without SEC’ permission APPROVED BY : PREPARED BY : Samsung Secret Application Engineering part. Mobile Division Samsung Electronics Co., Ltd. Rev.No 04-A00-G-080804 Page 1 / 30 Datasheet pdf - http://www.DataSheet4U.co.kr/ Doc.No. LTN160AT02 Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 Inverter 4. Block Diagram 4.1 TFT LCD Module 4.
