LTN160AT06-B01 - TFT LCD

Description

1.

Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2.

Optical Characteristics 3.

Features

  • High contrast ratio, high aperture structure.
  • 1366 x 768 pixels resolution (16:9).
  • Color Gamut (Typical 60%).
  • Low power consumption.
  • Fast Response Time.
  • DE(Data enable) only mode.
  • 3.3V LVDS Interface.
  • Onboard EEDID chip.
  • RoHS Compliance.
  • LED converter embedded.

📥 Download Datasheet

Datasheet preview – LTN160AT06-B01

📁 Similar Datasheet

  • LTN101AL03-801 - LCD (ETC)
  • LTN111 - LCD (NXP)
  • LTN121X1-L01 - color active matrix TFT (Thin Film Transistor) liquid crystal display (Samsung semiconductor)
  • LTN141P1-L01 - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141x - color active matrix TFT liquid crystal display (Samsung semiconductor)
  • LTN141X8-L02 - TFT Display Module (ETC)
  • LTN211 - Liquid Crystal Display (Philips)
Other Datasheets by Samsung

Full PDF Text Transcription

Click to expand full text

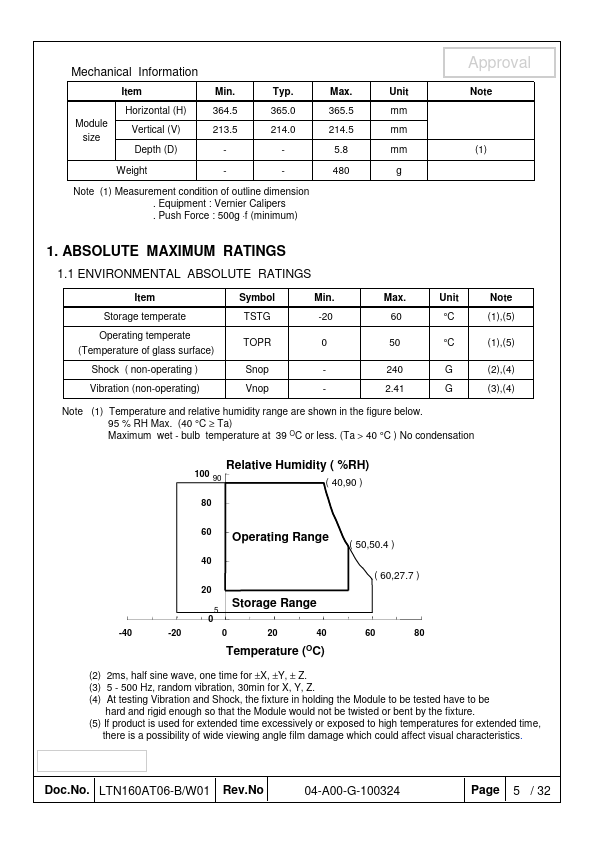

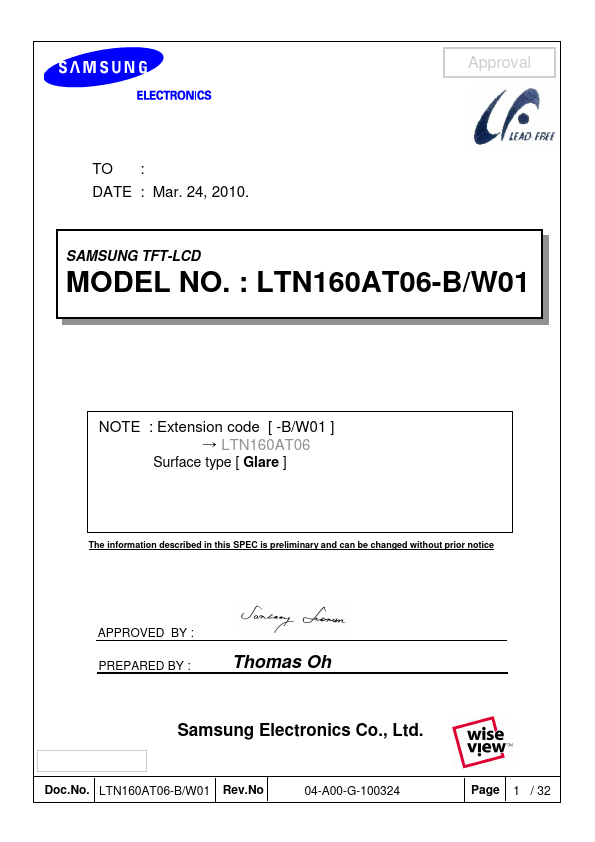

Approval TO : DATE : Mar. 24, 2010. SAMSUNG SAMSUNGTFT-LCD TFT-LCD MODEL MODEL NO. NO. :: LTN160AT06-B/W01 LTN160AT06-B/W01 NOTE : Extension code [ -B/W01 ] → LTN160AT06 www.DataSheet.net/ Surface type [ Glare ] The information described in this SPEC is preliminary and can be changed without prior notice APPROVED BY : PREPARED BY : Thomas Oh Samsung Electronics Co., Ltd. Samsung Secret Doc.No. LTN160AT06-B/W01 Rev.No 04-A00-G-100324 Page 1 / 32 Datasheet pdf - http://www.DataSheet4U.co.kr/ Approval CONTENTS Revision History General Description 1. Absolute Maximum Ratings 1.1 Absolute Ratings of environment 1.2 Electrical Absolute Ratings 2. Optical Characteristics 3. Electrical Characteristics 3.1 TFT LCD Module 3.2 Backlight Unit 3.3 Inverter 4. Block Diagram 4.
