DBA200UA60 Datasheet | SanRex Corporation

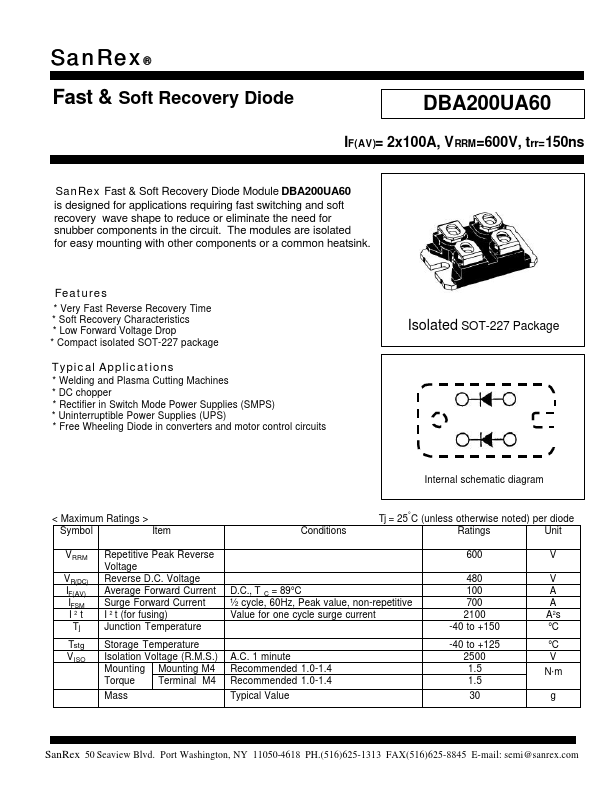

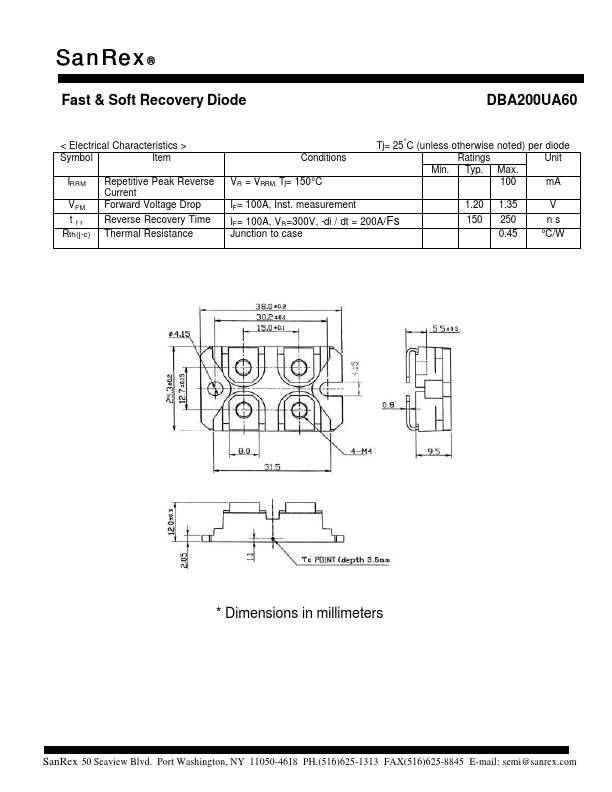

San Rex® Fast & Soft Recovery Diode IF(AV)= 2x100A, VRRM=600V, trr=150ns San Rex Fast & Soft Recovery Diode Module DBA200UA60 is designed for applications requiring fast switching and soft recovery wave shape to reduce or eliminate the need for snubber ponents in the circuit. The modules are isolated for easy mounting with other ponents or a mon heatsink. Features - Very Fast Reverse Recovery Time - Soft Recovery Characteristics - Low Forward Voltage Drop - pact isolated SOT-227 package Typical Applications - Welding and Plasma Cutting Machines - DC chopper - Rectifier in Switch Mode Power Supplies (SMPS) - Uninterruptible Power Supplies (UPS) - Free Wheeling Diode in converters and motor control circuits Isolated SOT-227 Package Internal schematic diagram < Maximum Ratings > Symbol Item Conditions Tj = 25°C (unless otherwise noted) per diode Ratings Unit VRRM Repetitive Peak Reverse Voltage VR(DC) Reverse D.C. Voltage IF(AV) Average Forward Current D.C., T C = 89°C IFSM Surge Forward Current ½ cycle, 60Hz, Peak value, non-repetitive I 2 t I 2 t (for...
