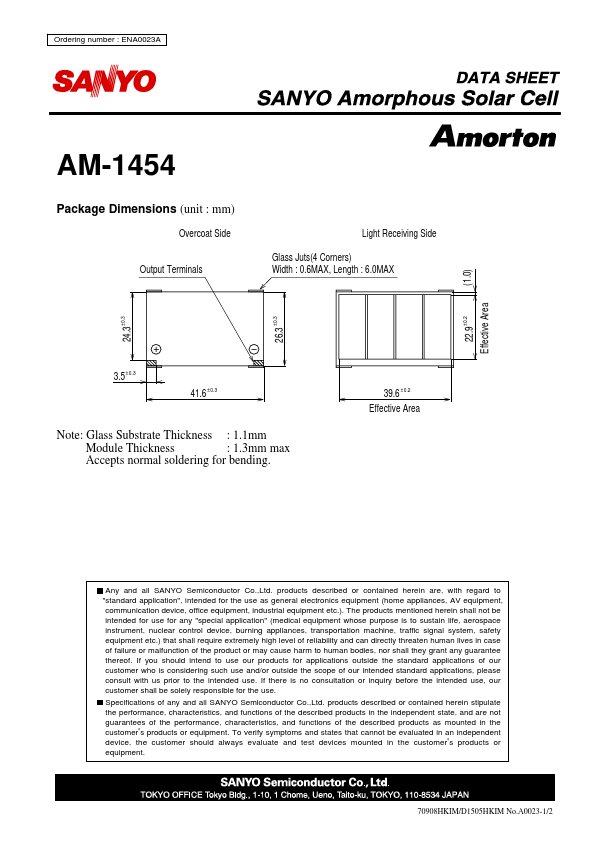

Ordering number : ENA0023A
AM-1454
Package Dimensions (unit : mm)
Overcoat Side
Output Terminals
Light Receiving Side
Glass Juts(4 Corners) Width : 0.6MAX, Length : 6.0MAX
24.3±0.3 26.3 ±0.3
3.5±0.3
41.6 ±0.3
Note: Glass Substrate Thickness : 1.1mm
Module Thickness
: 1.3mm max
Accepts normal soldering for bending.
39.6 ±0.2 Effective Area
(1.0)
Effective Area
22.9±0.2
Any and all SANYO Semiconductor Co.,Ltd. products described or contained herein are, with regard to "standard application", intended for the use as general electronics equipment (home appliances, AV equipment, communication device, office equipment, industrial equipment etc.).
