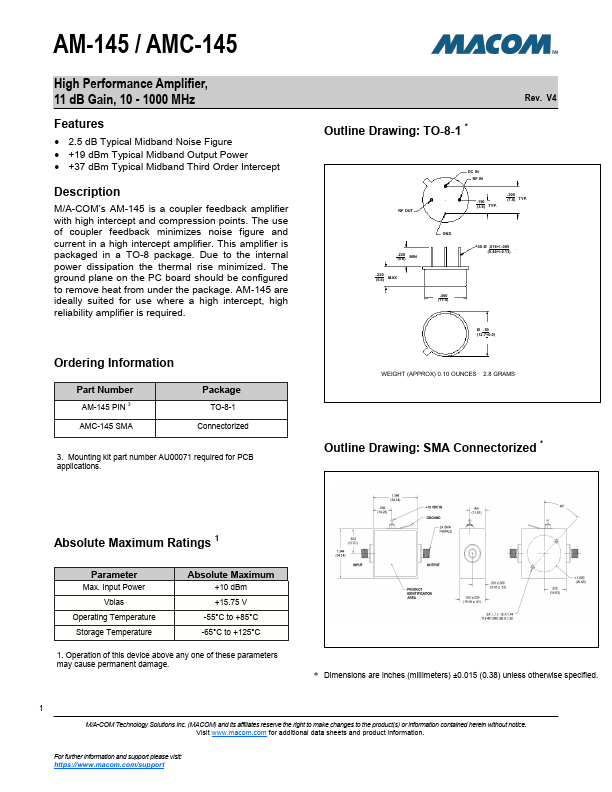

MACOM Technology Solutions AM-145
AM-145 is a coupler feedback amplifier with high intercept and compression points. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package.| Part No. | AM-145 |
|---|---|
| Datasheet | AM-145 Download |
| Manufacturer |  MACOM Technology Solutions |
| Description | High Performance Amplifier |
| Buy | Stock & Price |
FEATURES
● 2.5 dB Typical Midband Noise Figure● +19 dBm Typical Midband Output Power
● +37 dBm Typical Midband Third Order Intercept
DESCRIPTION
M/A-COM’s This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-145 are ideally suited for use where a high intercept, high reliability amplifier is required. Ordering Information Part Number AM-145 PIN 3 AMC-145 SMA Package TO-8-1 Connectorized 3. Mounting kit part number AU00071 required for PCB applications. Outline Drawing: TO-8-1 * Rev. V4 RF OUT .220 (5.6) MIN .220 (5.6) MAX DC IN RF IN .150 (3.8) TYP. .300 (7.6) TYP. GND 4X Ø .018+/-.005 (0.46+/-0.13) .450 (11.4) Ø .50 (12.7+0.5) WEIGHT (APPROX) 0.10 OUNCES 2.8 GRAMS Outline Drawing: SMA Connectorized *ABSOLUTE MAXIMUM RATINGS

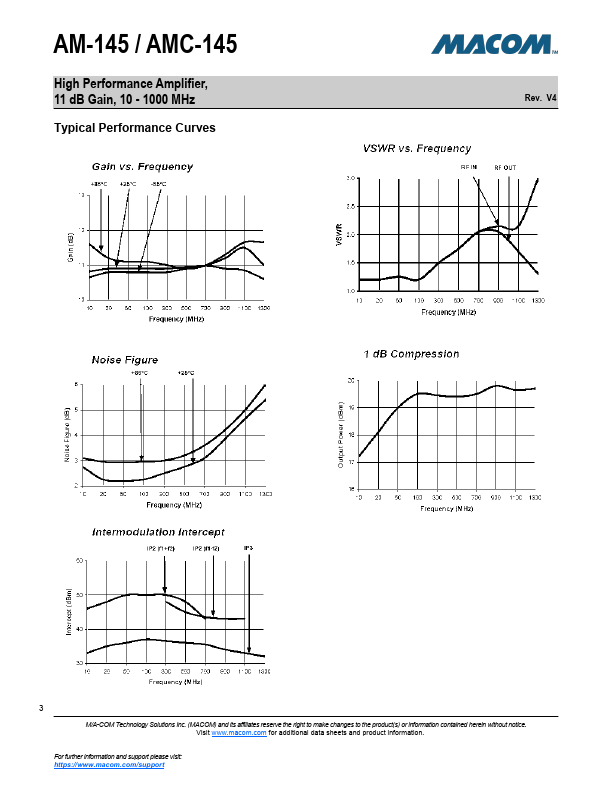

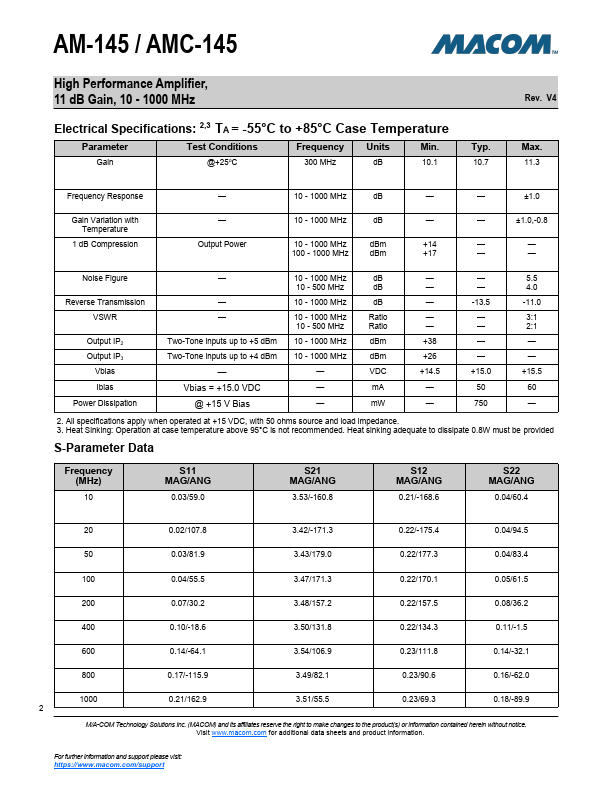

1 Parameter Max. Input Power Vbias Operating Temperature Storage Temperature Absolute Maximum +10 dBm +15.75 V -55°C to +85°C -65°C to +125°C 1.
