AM-140 - High Performance Amplifier

General Description

M/A-COM’s AM-140 is a coupler feedback amplifier with high intercept and compression points.

The use of coupler feedback minimizes noise figure and current in a high intercept amplifier.

This amplifier is packaged in a flatpack with flanges.

Key Features

  • n +47 dBm Typical Midband Third Order Intercept n +28 dBm Typical Midband 1 dB Compression n 5.4 dB Typical Midband Noise Figure.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AM-1407C Silicon Solar Cell Sanyo
AM-1407CA Silicon Solar Cell Sanyo
AM-1417 Amorphous Solar Cell Sanyo
AM-1417C Silicon Solar Cell Sanyo
AM-1417CA Silicon Solar Cell Sanyo

Other Datasheets by MACOM Technology Solutions

Part Number Description
AM-142 Low Noise Amplifier
AM-143 Low Noise Amplifier
AM-145 High Performance Amplifier
AM-146 High Performance Amplifier
AM-147 Cascadable Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

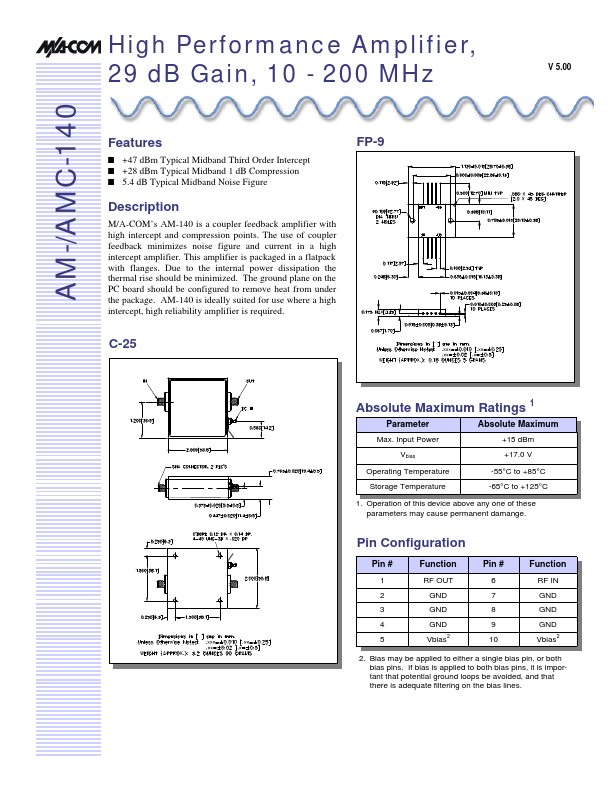

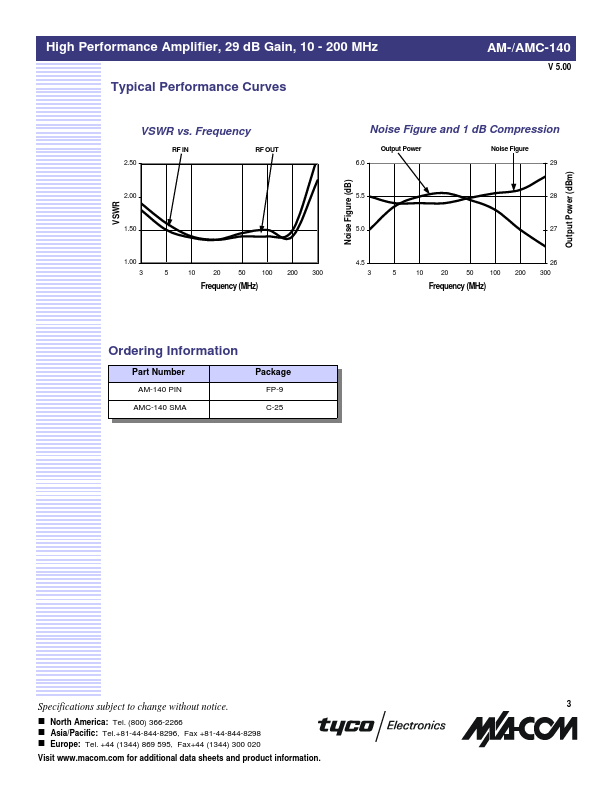

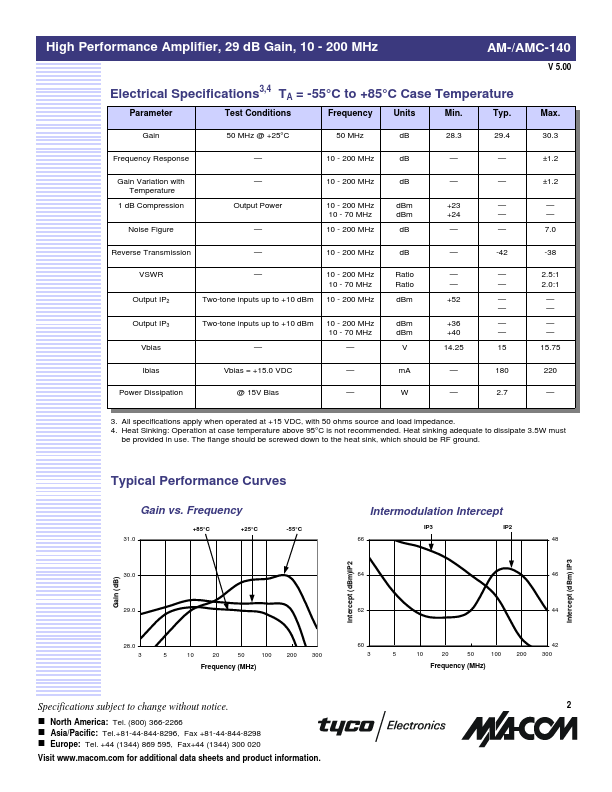

High Performance Amplifier, 29 dB Gain, 10 - 200 MHz V 5.00 AM-/AMC-140 Features n +47 dBm Typical Midband Third Order Intercept n +28 dBm Typical Midband 1 dB Compression n 5.4 dB Typical Midband Noise Figure Description M/A-COM’s AM-140 is a coupler feedback amplifier with high intercept and compression points. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a flatpack with flanges. Due to the internal power dissipation the thermal rise should be minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-140 is ideally suited for use where a high intercept, high reliability amplifier is required.
