AM-147 - Cascadable Amplifier

General Description

M/A-COM’s AM-147 is a coupler feedback amplifier with high intercept and compression points.

The use of coupler feedback minimizes noise figure and current in a high intercept amplifier.

This amplifier is packaged in a TO-8 package.

Key Features

  • HIGH POWER OUTPUT: +21 dBm (TYP. ).
  • HIGH THIRD ORDER IP3: +33 dBm (TYP. ).
  • HIGH.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AM-1407C Silicon Solar Cell Sanyo
AM-1407CA Silicon Solar Cell Sanyo
AM-1417 Amorphous Solar Cell Sanyo
AM-1417C Silicon Solar Cell Sanyo
AM-1417CA Silicon Solar Cell Sanyo

Other Datasheets by MACOM Technology Solutions

Part Number Description
AM-140 High Performance Amplifier
AM-142 Low Noise Amplifier
AM-143 Low Noise Amplifier
AM-145 High Performance Amplifier
AM-146 High Performance Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

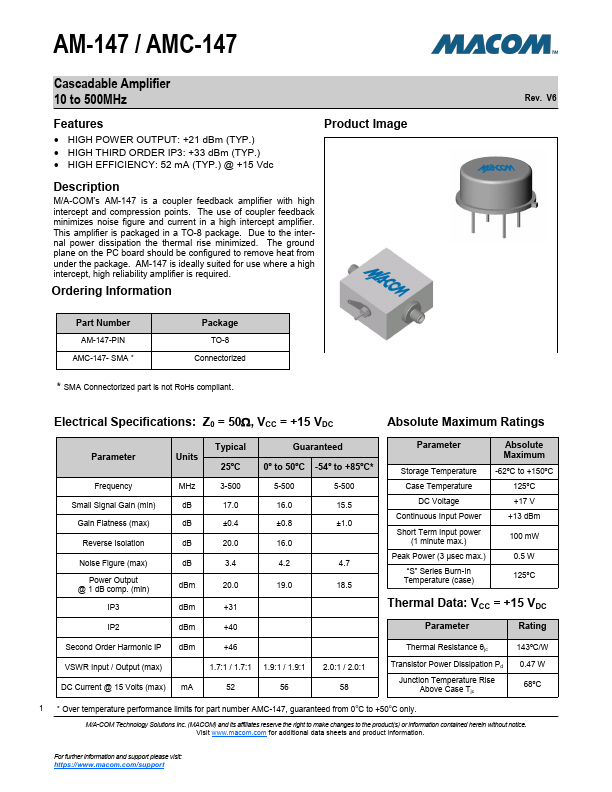

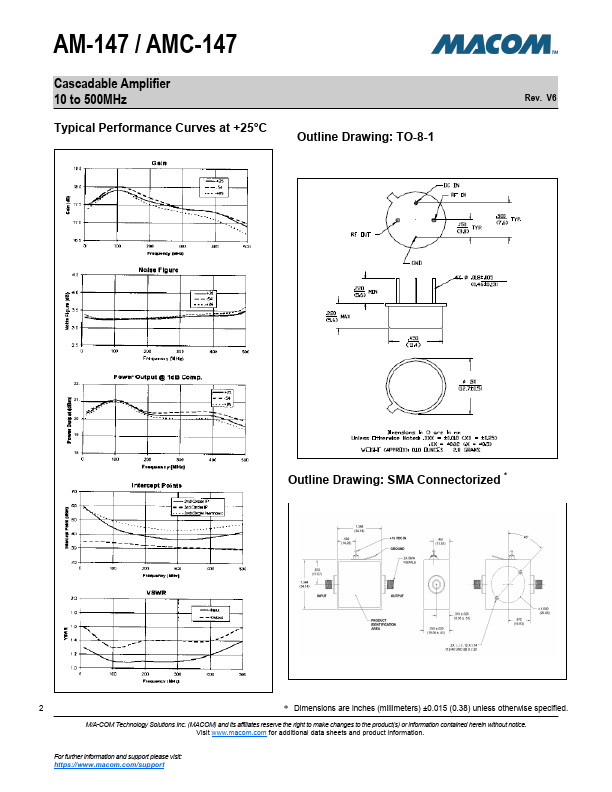

AM-147 / AMC-147 Cascadable Amplifier 10 to 500MHz Features  HIGH POWER OUTPUT: +21 dBm (TYP.)  HIGH THIRD ORDER IP3: +33 dBm (TYP.)  HIGH EFFICIENCY: 52 mA (TYP.) @ +15 Vdc Product Image Description M/A-COM’s AM-147 is a coupler feedback amplifier with high intercept and compression points. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package. Due to the internal power dissipation the thermal rise minimized. The ground plane on the PC board should be configured to remove heat from under the package. AM-147 is ideally suited for use where a high intercept, high reliability amplifier is required. Ordering Information Rev.
