AM-142 - Low Noise Amplifier

General Description

M/A-COM’s AM-142 is a coupler feedback amplifier with low noise figure and high intercept points for the low bias current.

The use of coupler feedback minimizes noise figure and current in a high intercept amplifier.

This amplifier is packaged in a TO-8 package.

Key Features

  • n 2.2 dB Typical Midband Noise Figure n +6 dBm Typical Midband Output Power n +20 dBm Typical Midband Third Order Intercept.

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
AM-1424C Silicon Solar Cell Sanyo
AM-1424CA Silicon Solar Cell Sanyo
AM-1407C Silicon Solar Cell Sanyo
AM-1407CA Silicon Solar Cell Sanyo
AM-1417 Amorphous Solar Cell Sanyo

Other Datasheets by MACOM Technology Solutions

Part Number Description
AM-140 High Performance Amplifier
AM-143 Low Noise Amplifier
AM-145 High Performance Amplifier
AM-146 High Performance Amplifier
AM-147 Cascadable Amplifier

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

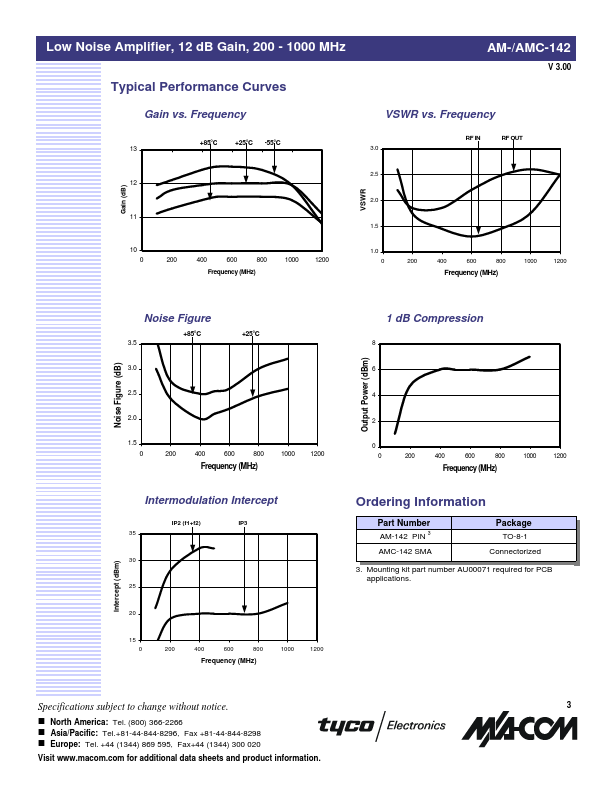

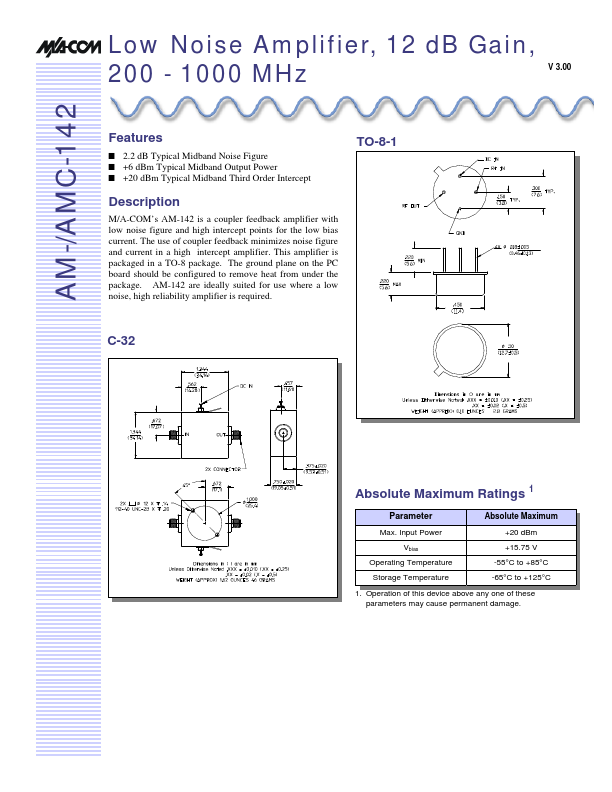

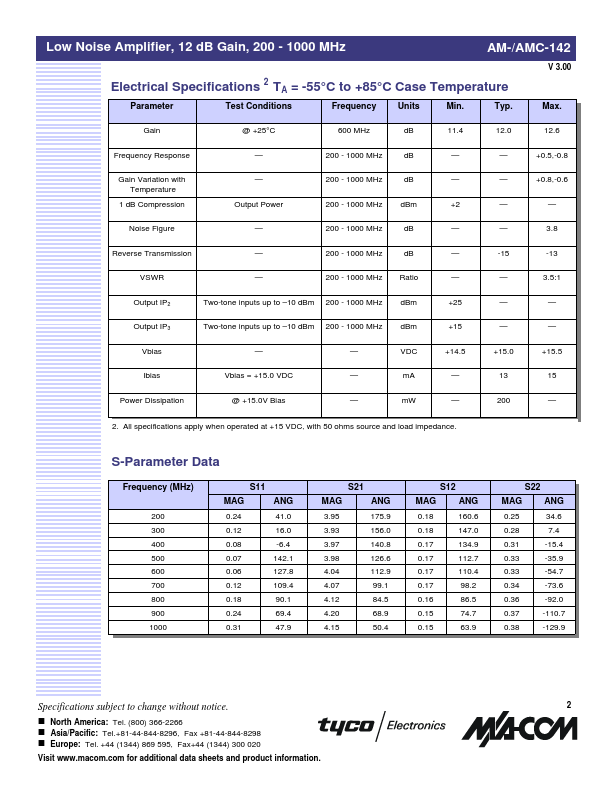

AM-/AMC-142 Low Noise Amplifier, 12 dB Gain, 200 - 1000 MHz V 3.00 Features n 2.2 dB Typical Midband Noise Figure n +6 dBm Typical Midband Output Power n +20 dBm Typical Midband Third Order Intercept Description M/A-COM’s AM-142 is a coupler feedback amplifier with low noise figure and high intercept points for the low bias current. The use of coupler feedback minimizes noise figure and current in a high intercept amplifier. This amplifier is packaged in a TO-8 package. The ground plane on the PC board should be configured to remove heat from under the package. AM-142 are ideally suited for use where a low noise, high reliability amplifier is required. TO-8-1 C-32 Absolute Maximum Ratings 1 Parameter Absolute Maximum Max. Input Power +20 dBm Vbias Operating Temperature +15.
