AM-146 - High Performance Amplifier

General Description

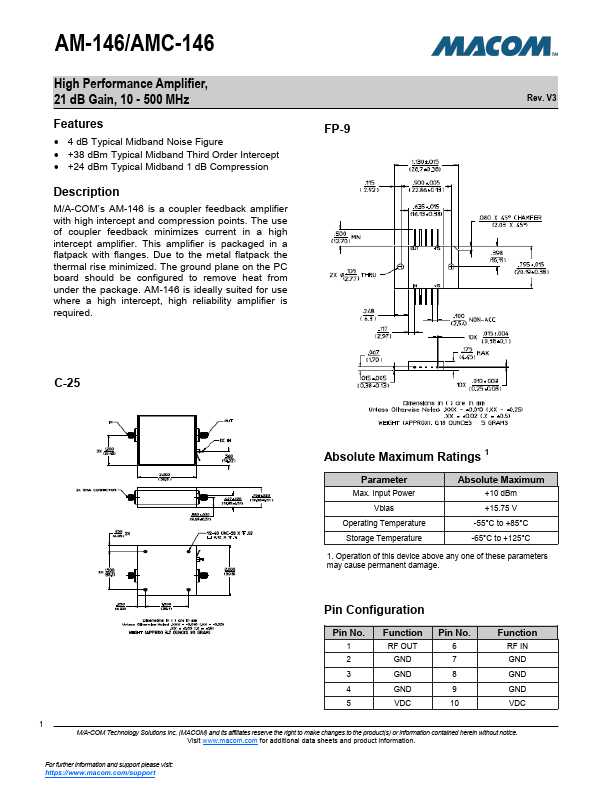

M/A-COM’s AM-146 is a coupler feedback amplifier with high intercept and compression points.

The use of coupler feedback minimizes current in a high intercept amplifier.

This amplifier is packaged in a flatpack with flanges.

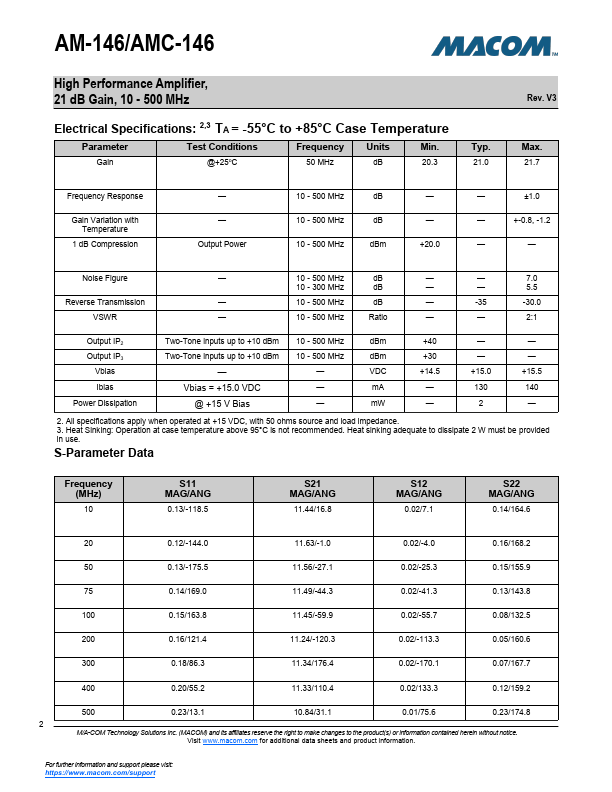

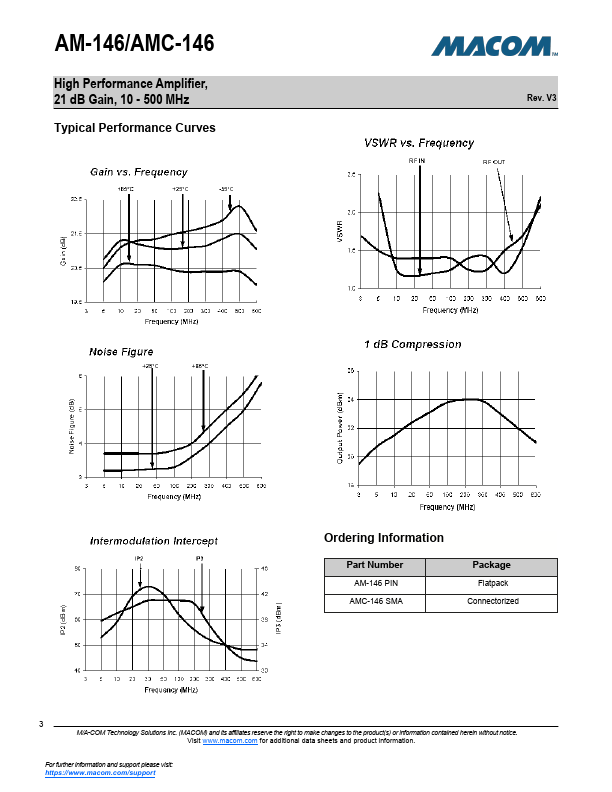

Key Features

  • 4 dB Typical Midband Noise Figure.
  • +38 dBm Typical Midband Third Order Intercept.
  • +24 dBm Typical Midband 1 dB Compression.
