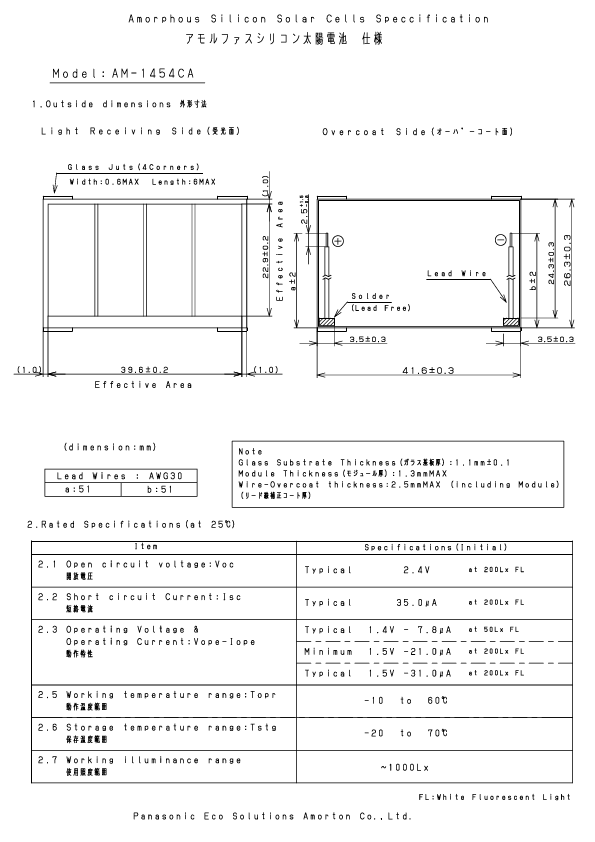

AM-1454CA - Silicon Solar Cell

Sanyo

Datasheet Details

Part number	AM-1454CA
Manufacturer	Sanyo
File Size	167.49 KB
Description	Silicon Solar Cell
Datasheet	AM-1454CA Datasheet
Additional preview pages of the AM-1454CA datasheet.

📁 Similar Datasheet

AM-145 - High Performance Amplifier (MACOM)
AM-140 - High Performance Amplifier (MACOM)
AM-142 - Low Noise Amplifier (MACOM)
AM-143 - Low Noise Amplifier (MACOM)
AM-1435 - Wideband Operational Amplifiers (Datel)
AM-146 - High Performance Amplifier (MACOM)
AM-147 - Cascadable Amplifier (MACOM)
AM-1024600-070IP - LCD (Amson)
AM-1024600B3TMQW-00H - LCD (AMPIRE)
AM-1024600BTMQW-00H - LCD (AMPIRE)

Other Datasheets by Sanyo

AM-1454C - Silicon Solar Cell
AM-1454 - Amorphous Solar Cell
AM-1456 - Amorphous Solar Cell
AM-1407C - Silicon Solar Cell
AM-1407CA - Silicon Solar Cell
AM-1417 - Amorphous Solar Cell
AM-1417C - Silicon Solar Cell
AM-1417CA - Silicon Solar Cell

Full PDF Text Transcription

Click to expand full text

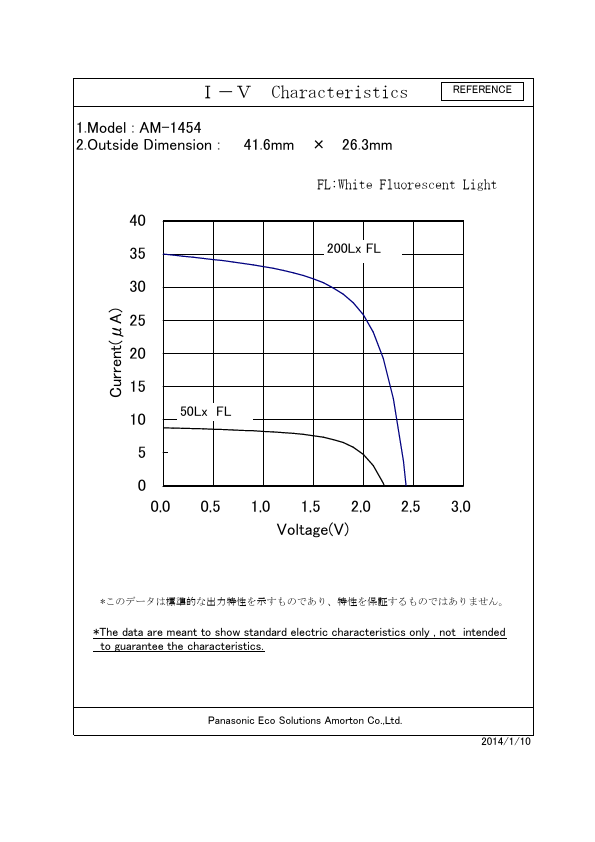

Ｉ－Ｖ　Characteristics 1.Model : AM-1454 2.Outside Dimension : 41.6mm × 26.3mm REFERENCE Current(μA) FL:White Fluorescent Light 40 35 200Lx FL 30 25 20 15 10 50Lx FL 5 0 0.0 0.5 1.0 1.5 2.0 2.5 3.0 Voltage(V) *、。 *The data are meant to show standard electric characteristics only , not intended to guarantee the characteristics. Panasonic Eco Solutions Amorton Co.,Ltd. 2014/1/10 Dependence of Output on Illumination 1.Model : AM-1454 2.Outside Dimension : 41.6mm × 26.3mm REFERENCE Voltage（V) 4 3 2 1 0 10 FL:White Fluorescent Light Voc 100 1000 Illumination（Lx） 10000 1000 Isc 100 Iope Vope=1.
