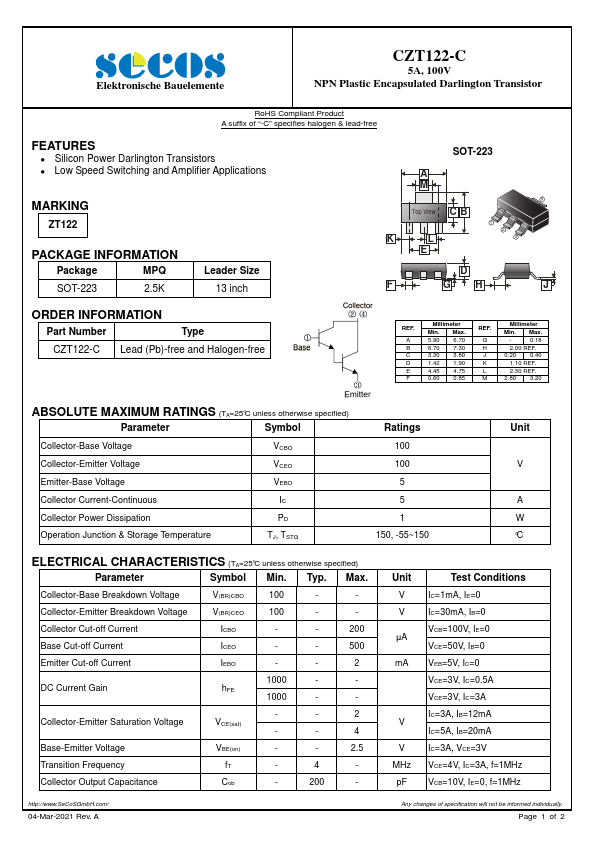

CZT122-C
CZT122-C is 5A 100V NPN Plastic Encapsulated Darlington Transistor manufactured by SeCoS Halbleitertechnologie GmbH.
Elektronische Bauelemente
5A, 100V NPN Plastic Encapsulated Darlington Transistor
Ro HS pliant Product A suffix of “-C” specifies halogen & lead-free
Features
Silicon Power Darlington Transistors Low Speed Switching and Amplifier Applications
MARKING
ZT122
PACKAGE INFORMATION
Package
SOT-223
2.5K
Leader Size 13 inch
SOT-223
Top View C B
1 2 3
ORDER INFORMATION
Part Number
Type
CZT122-C Lead (Pb)-free and Halogen-free
REF.
A B C D E F
Millimeter Min. Max. 5.90 6.70 6.70 7.30 3.30 3.80 1.42 1.90 4.45 4.75 0.60 0.85
REF.
G H J K L M
Millimeter
Min. Max.
- 0.18
2.00 REF.
0.20 0.40
1.10...
