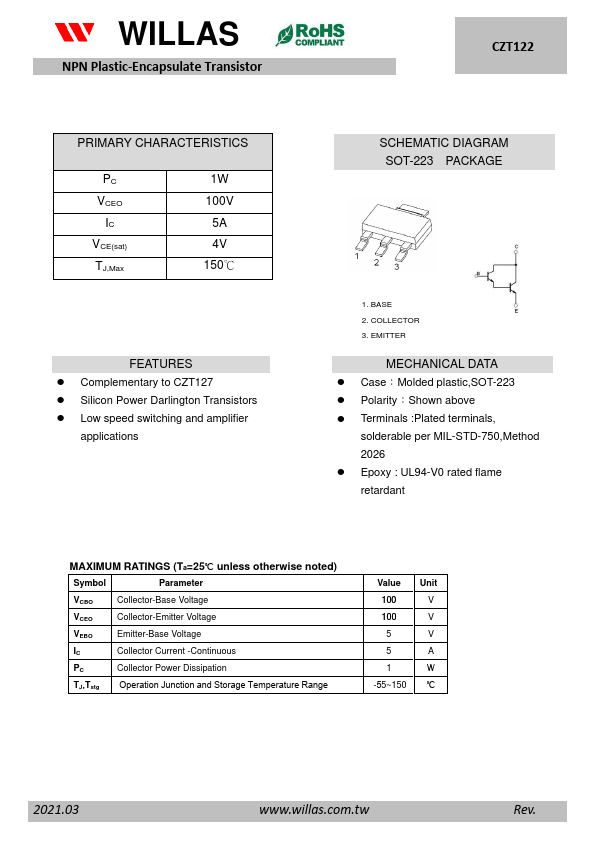

CZT122
CZT122 is NPN Plastic-Encapsulate Transistor manufactured by WILLAS.
WILLAS
NPN Plastic-Encapsulate Transistor
PRIMARY CHARACTERISTICS
PC VCEO
IC VCE(sat) TJ,Max
1W 100V
5A 4V 150℃
Features
- plementary to CZT127
- Silicon Power Darlington Transistors
- Low speed switching and amplifier applications
SCHEMATIC DIAGRAM SOT-223 PACKAGE
1. BASE 2. COLLECTOR 3. EMITTER
MECHANICAL DATA
- Case：Molded plastic,SOT-223
- Polarity：Shown above
- Terminals :Plated terminals, solderable per MIL-STD-750,Method 2026
- Epoxy : UL94-V0 rated flame retardant
MAXIMUM RATINGS (Ta=25℃ unless otherwise noted)
Symbol
Parameter
VCBO
Collector-Base Voltage
VCEO
Collector-Emitter Voltage
VEBO
Emitter-Base Voltage
Collector Current -Continuous
Collector Power Dissipation
TJ,Tstg Operation Junction and Storage Temperature...
