1SS388 Datasheet | Semiware Semiconductor

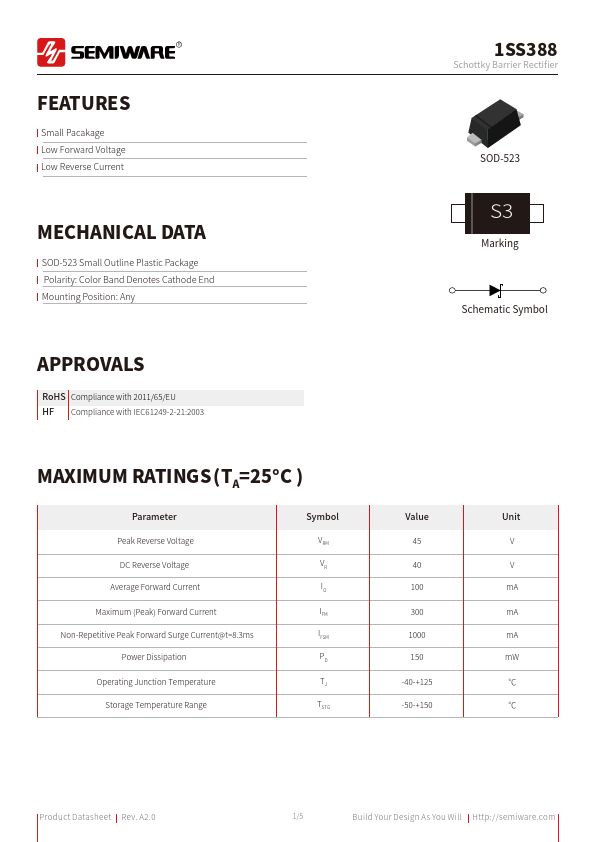

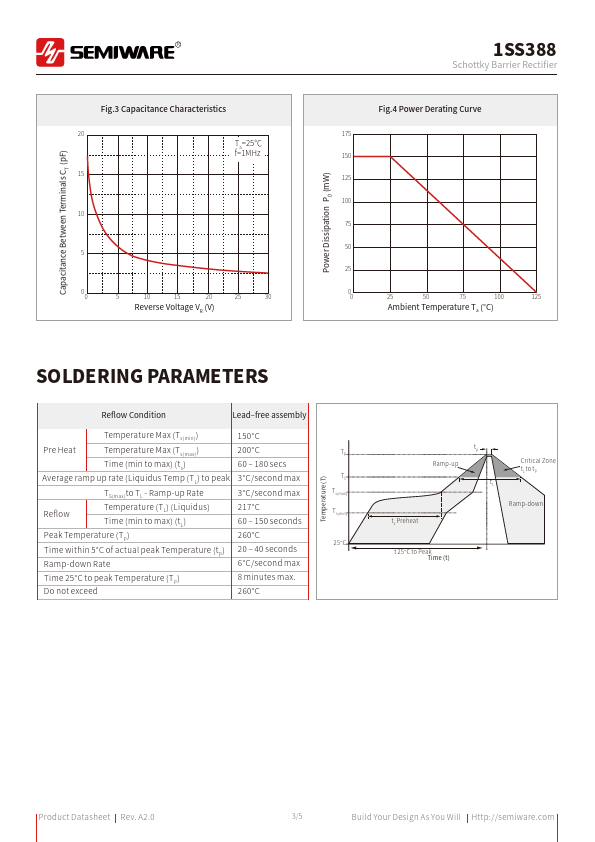

FEATURES Small Pacakage Low Forward Voltage Low Reverse Current MECHANICAL DATA SOD-523 Small Outline Plastic Package Polarity: Color Band Denotes Cathode End Mounting Position: Any APPROVALS Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003 MAXIMUM RATINGS (TA=25°C ) Parameter Peak Reverse Voltage DC Reverse Voltage Average Forward Current Maximum (Peak) Forward Current Non-Repetitive Peak Forward Surge Current@t=8.3ms Power Dissipation Operating Junction Temperature Storage Temperature Range Symbol VRM VR IO IFM IFSM PD TJ TSTG Schottky Barrier Rectifier SOD-523 S3 Marking Schematic Symbol Value 45 40 100 300 1000 150 -40-+125 -50-+150 Unit V V m A m A m A m W ℃ ℃ Product Datasheet Rev. A2.0 1/5 Build Your Design As You Will Http://semiware. Schottky Barrier Rectifier ELECTRICAL CHARACTERISTICS(TA=25°C ) Parameter Forward Voltage Reverse Current Total Capacitance Symbol IR CT Test Conditions IF=1m A IF=10m A IF=50m A VR=10V VR=0V, f =1MHz Min. Typ. Max. Unit μA 25 p F Forward Current IF (m A) Ta=100°C Ta=25°C Reverse Current IR(μA) CHARACTERISTIC CURVES Fig.1 Forward Characteristics 300...
