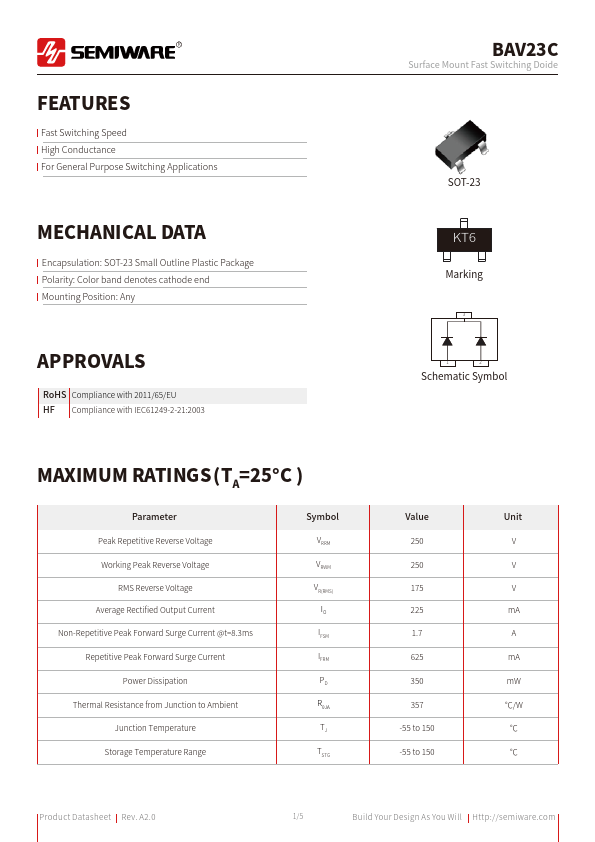

BAV23C
FEATURES
Fast Switching Speed High Conductance For General Purpose Switching Applications
MECHANICAL DATA
Encapsulation: SOT-23 Small Outline Plastic Package Polarity: Color band denotes cathode end Mounting Position: Any
APPROVALS
Ro HS pliance with 2011/65/EU HF pliance with IEC61249-2-21:2003
Surface Mount Fast Switching Doide
SOT-23
KT6
Marking
Schematic Symbol
MAXIMUM RATINGS (TA=25°C )
Parameter Peak Repetitive Reverse Voltage Working Peak Reverse Voltage
RMS Reverse Voltage Average Rectified Output Current Non-Repetitive Peak Forward Surge Current @t=8.3ms Repetitive Peak Forward Surge Current
Power Dissipation Thermal Resistance from Junction to Ambient
Junction Temperature Storage Temperature Range
Symbol VRRM VRWM VR(RMS) IO IFSM IFRM PD RθJA TJ TSTG
Value 250 250 175 225 1.7 625 350 357
-55 to 150 -55 to 150
Unit V V V m A A m A m W ℃/W
℃ ℃
Product Datasheet Rev. A2.0
1/5
Build Your Design As You Will Http://semiware.
