SHE-750 - Super High Efficiency Transformers

Download the SHE-750 datasheet PDF. This datasheet also covers the SHE-250 variant, as both devices belong to the same super high efficiency transformers family and are provided as variant models within a single manufacturer datasheet.

📥 Download Datasheet

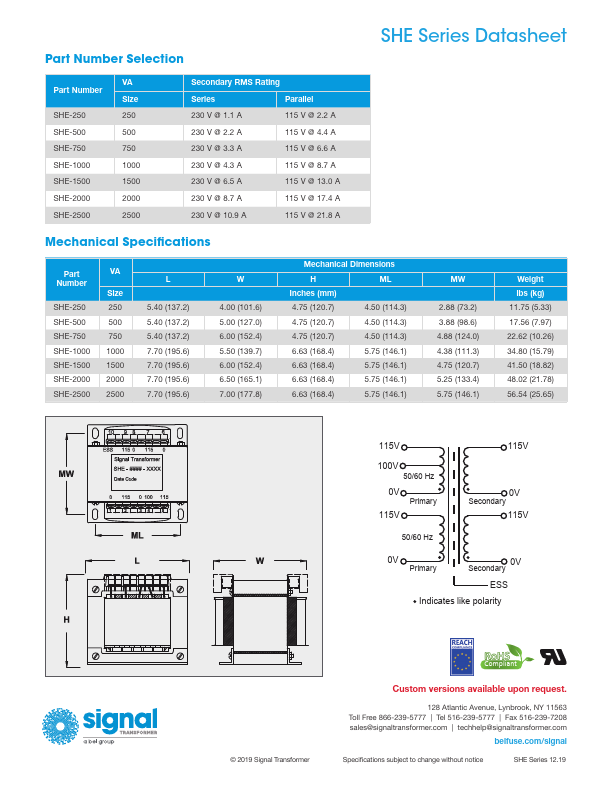

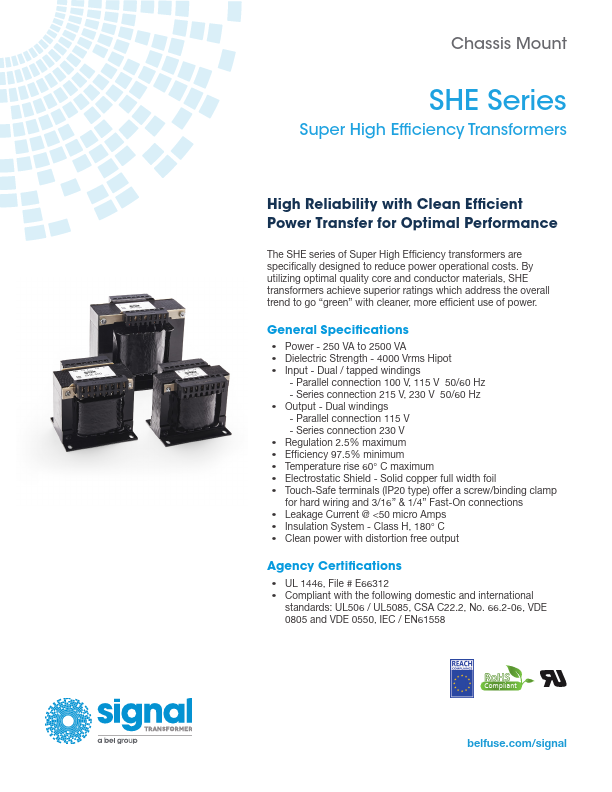

SHE-750 super high efficiency transformers by Signal Transformer - Datasheet Preview — Note: The manufacturer provides a single datasheet file (SHE-250-SignalTransformer.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number	SHE-750
Manufacturer	Signal Transformer
File Size	778.31 KB
Description	Super High Efficiency Transformers
Datasheet	SHE-750 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SHE113MD	High Efficiency LED Lamp	AUK corp
SHE113YF	High Brightness LED Lamp	AUK corp
SHE114RC	High Efficiency LED Lamp	AUK corp
SHE123AF	High Efficiency LED Lamp	AUK corp
SHE123BGH	High Brightness LED Lamp	AUK corp

Other Datasheets by Signal Transformer

Part Number	Description
SHE-1000	Super High Efficiency Transformers
SHE-1500	Super High Efficiency Transformers
SHE-2000	Super High Efficiency Transformers
SHE-250	Super High Efficiency Transformers
SHE-2500	Super High Efficiency Transformers

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

Chassis Mount SHE Series Super High Efficiency Transformers High Reliability with Clean Efficient Power Transfer for Optimal Performance The SHE series of Super High Efficiency transformers are specifically designed to reduce power operational costs. By utilizing optimal quality core and conductor materials, SHE transformers achieve superior ratings which address the overall trend to go “green” with cleaner, more efficient use of power. General Specifications • Power - 250 VA to 2500 VA • Dielectric Strength - 4000 Vrms Hipot • Input - Dual / tapped windings - Parallel connection 100 V, 115 V 50/60 Hz - Series connection 215 V, 230 V 50/60 Hz • Output - Dual windings - Parallel connection 115 V - Series connection 230 V • Regulation 2.5% maximum • Efficiency 97.
