SA21345A Datasheet 300ma Ldo Regulator

Manufacturer: Silergy

Overview: Application Note: SA21345A 36V, 300mA LDO Regulator General.

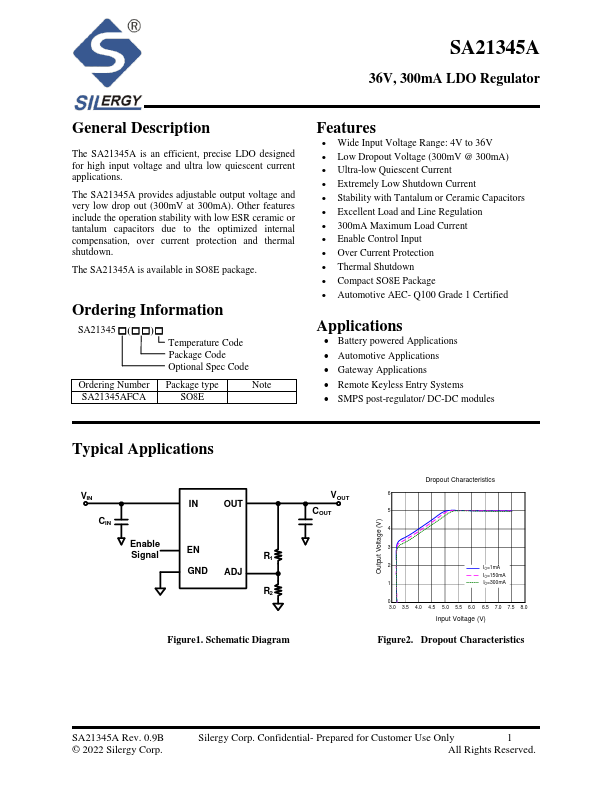

General Description

The SA21345A is an efficient, precise LDO designed for high input voltage and ultra low quiescent current applications.

The SA21345A provides adjustable output voltage and very low drop out (300mV at 300mA).

Other

Key Features

  • include the operation stability with low ESR ceramic or tantalum capacitors due to the optimized internal compensation, over current protection and thermal shutdown. The SA21345A is available in SO8E package. Ordering Information SA21345.
  • (.
  • ).
  • Temperature Code Package Code Optional Spec Code Ordering Number Package type Note SA21345AFCA SO8E Features.
  • Wide Input Voltage Range: 4V to 36V.
  • Low Dropout Voltage (300mV @ 300mA).
  • Ultra-low Quiesce.
