SA23002A - 2A Single Synchronous Buck Converter

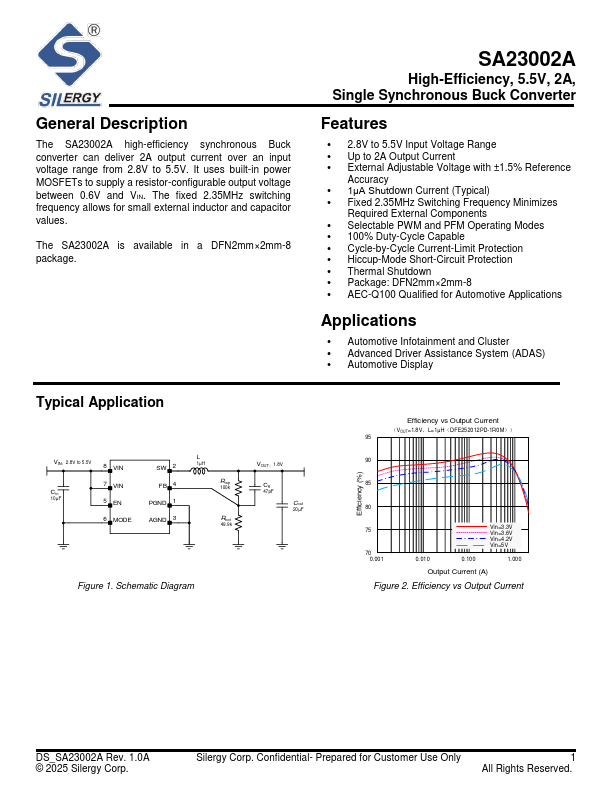

General Description

The SA23002A is a synchronous Buck converter with built-in power MOSFETs to supply adjustable power voltage requests.

The device is capable of providing up to 2A of output current.

The SA23002A has an input voltage range of 2.8V to 5.5V.

Key Features

  • AEC-Q100-Grade 1 -40°C ~125°C.
  • 2.8V to 5.5V Input Voltage Range.
  • External Adjustable Voltage with ±1.5% Reference Accuracy.
  • Typical 1μA Shut Down Current.
  • Fixed 2.35MHz Switching Frequency.
  • PWM and PFM Operating Selectable.
  • 100% Duty Cycle for Lowest Dropout.
  • Cycle by Cycle Current Limit Protection.
  • Hiccup-Mode Short-Circuit Protection.
  • Thermal Shutdown.
  • Package: DFN2×2-8.

📥 Download Datasheet

Datasheet Details

Part number SA23002A
Manufacturer Silergy
File Size 1.35 MB
Description 2A Single Synchronous Buck Converter
Datasheet download datasheet SA23002A Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SA23-11 SINGLE DIGIT NUMERIC DISPLAY Kingbright
SA23-11GWA Single Digit Numeric Display Kingbright
SA23-11SRWA Single Digit Numeric Display Kingbright
SA23-11SURKWA Single Digit Numeric Display Kingbright
SA23-12 SINGLE DIGIT NUMERIC DISPLAY Kingbright

Other Datasheets by Silergy

Part Number Description
SA23002B 2A Single Synchronous Buck Converter
SA23002C Single Synchronous Buck Converter
SA23006 6A Single Synchronous Buck Converter
SA21345A 300mA LDO Regulator
SA24403 Synchronous Step Down Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

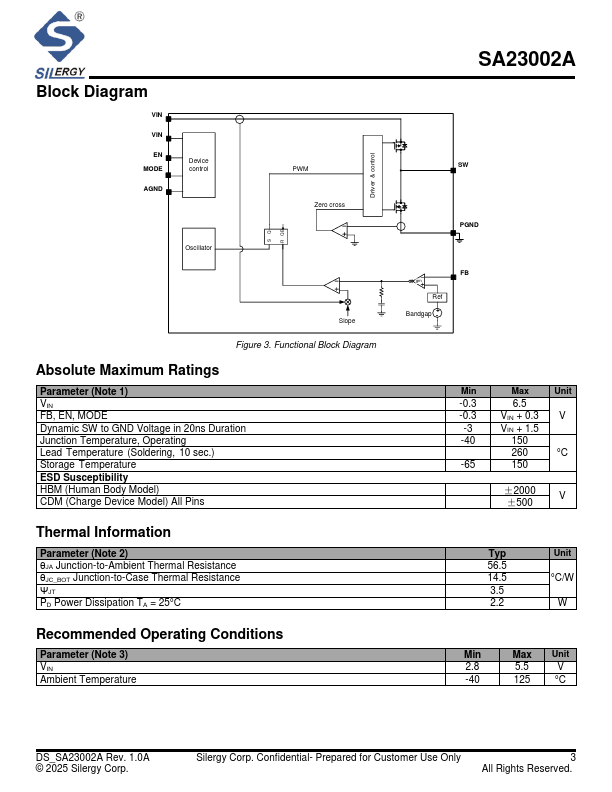

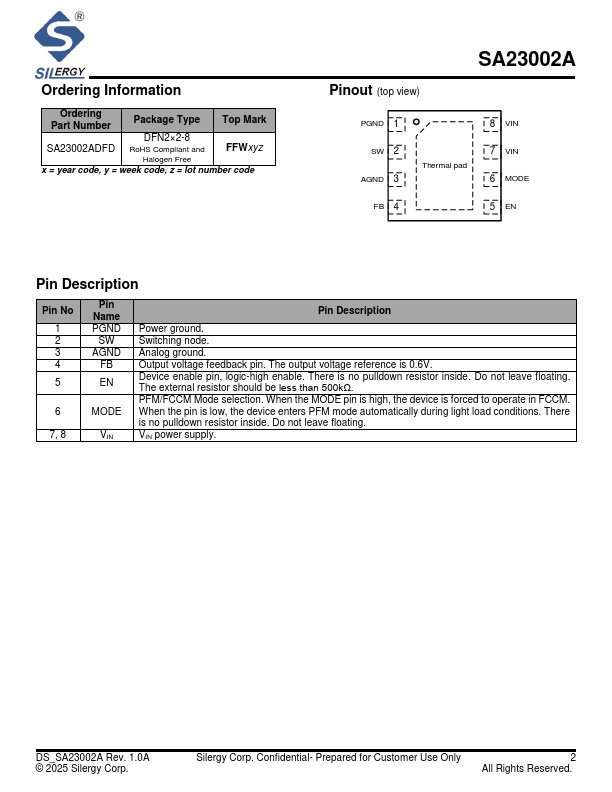

SA23002A 5.5V, 2A Single Synchronous Buck Converter General Description The SA23002A is a synchronous Buck converter with built-in power MOSFETs to supply adjustable power voltage requests. The device is capable of providing up to 2A of output current. The SA23002A has an input voltage range of 2.8V to 5.5V. It could work with up to 2.35MHz switching frequency, due to which small inductor is applicable. Ordering Information SA23002 □(□□ □) Package Code Optional Spec Code Ordering Package Type Note Number SA23002ADFD DFN2×2-8 ---- Key Features  AEC-Q100-Grade 1 -40°C ~125°C  2.8V to 5.5V Input Voltage Range  External Adjustable Voltage with ±1.5% Reference Accuracy  Typical 1μA Shut Down Current  Fixed 2.
