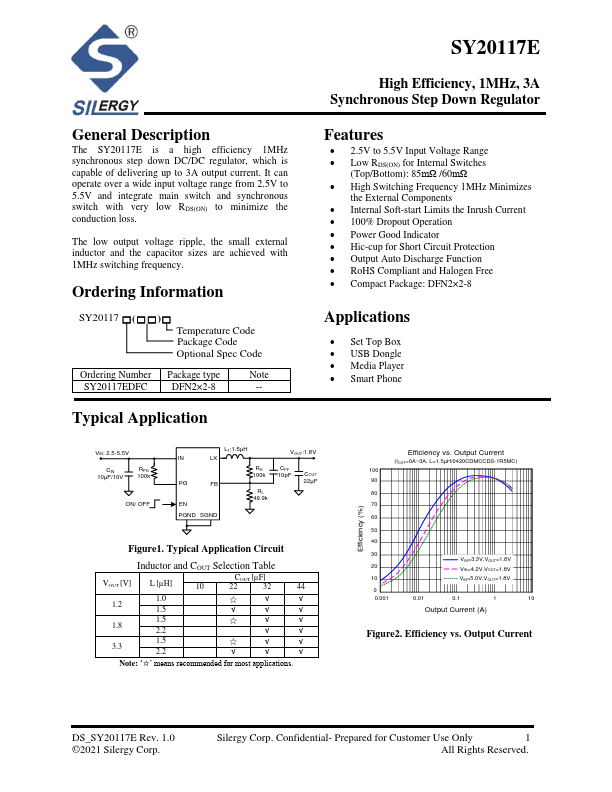

SY20117E
SY20117E is 3A Synchronous Step Down Regulator manufactured by Silergy.
Description
The SY20117E is a high efficiency 1MHz synchronous step down DC/DC regulator, which is capable of delivering up to 3A output current. It can operate over a wide input voltage range from 2.5V to 5.5V and integrate main switch and synchronous switch with very low RDS(ON) to minimize the conduction loss.
The low output voltage ripple, the small external inductor and the capacitor sizes are achieved with 1MHz switching frequency.
Ordering Information
SY20117
- (-
- )- Temperature Code Package Code Optional Spec Code
Ordering Number Package type
Note
SY20117EDFC DFN2×2-8
--
Typical Application
Features
- 2.5V to 5.5V Input Voltage Range
- Low RDS(ON) for Internal Switches
(Top/Bottom): 85mΩ /60mΩ
- High Switching Frequency 1MHz Minimizes the External ponents
- Internal Soft-start Limits the Inrush Current
- 100% Dropout Operation
- Power Good Indicator
- Hic-cup for Short Circuit Protection
- Output Auto Discharge Function
- Ro HS pliant and Halogen Free
- pact Package: DFN2×2-8
Applications
- Set Top Box
- USB Dongle
- Media Player
- Smart Phone
VIN: 2.5-5.5V
CIN 10μF/10V
RPG 100k
ON/ OFF
L1:1.5µH
RH...
