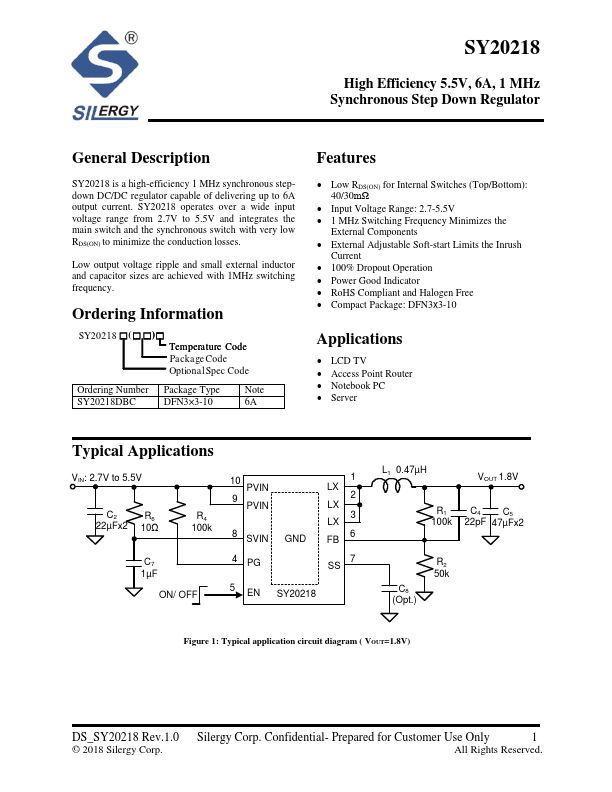

Description SY20218 is a high-efficiency 1 MHz synchronous stepdown DC/DC regulator capable of delivering up to 6A output current. SY20218 operates over a wide input voltage range from 2.7V to 5.5V and integrates the main switch and the synchronous switch with very low RDS(ON) to minimize the conduction losses. Low output voltage ripple and small external inductor and capacitor sizes are achieved with 1MHz switching frequency. Ordering Information - (- - )- Temperature Code Pa cka ge Code Optional Spec Code Ordering Number Package Type Note SY20218DBC DFN3×3-10 6A Features - Low RDS(ON) for Internal Switches (Top/Bottom): 40/30mΩ - Input Voltage Range: 2.7-5.5V - 1 MHz Switching Frequency Minimizes the External ponents - External Adjustable Soft-start Limits the Inrush Current - 100% Dropout Operation - Power Good Indicator - Ro HS pliant and Halogen Free - pact Package: DFN3x3-10 Applications - LCD TV - Access Point Router - Notebook PC - Server Typical Applications VIN: 2.7V to 5.5V C2 R6 22µFх2 10Ω R4 100k C7 1µF ON/ OFF 10 PVIN 9 PVIN 8 SVIN 4 PG 1 LX 2...
