SY20257K Datasheet | Silergy

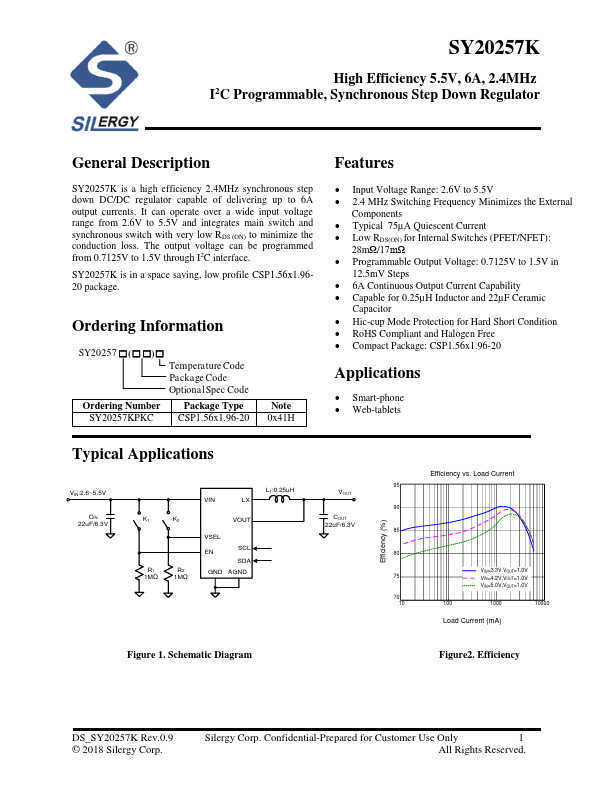

Description SY20257K is a high efficiency 2.4MHz synchronous step down DC/DC regulator capable of delivering up to 6A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.7125V to 1.5V through I2C interface. SY20257K is in a space saving, low profile CSP1.56x1.9620 package. Ordering Information SY20257 - (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package Type SY20257KPKC CSP1.56x1.96-20 Note 0x41H Features - Input Voltage Range: 2.6V to 5.5V - 2.4 MHz Switching Frequency Minimizes the External ponents - Typical 75µA Quiescent Current - Low RDS(ON) for Internal Switches (PFET/NFET): 28mΩ/17mΩ - Programmable Output Voltage: 0.7125V to 1.5V in 12.5m V Steps - 6A Continuous Output Current Capability - Capable for 0.25µH Inductor and 22µF Ceramic Capacitor - Hic-cup Mode Protection for Hard Short Condition - Ro HS pliant and Halogen Free - pact Package: CSP1.56x1.96-20 Applications - Smart-phone - Web-tablets Typical Applications VIN:2.6~5.5V CIN 22u F/6.3V K1 K2 R1 1MΩ R2 1MΩ L1:0.25u...
