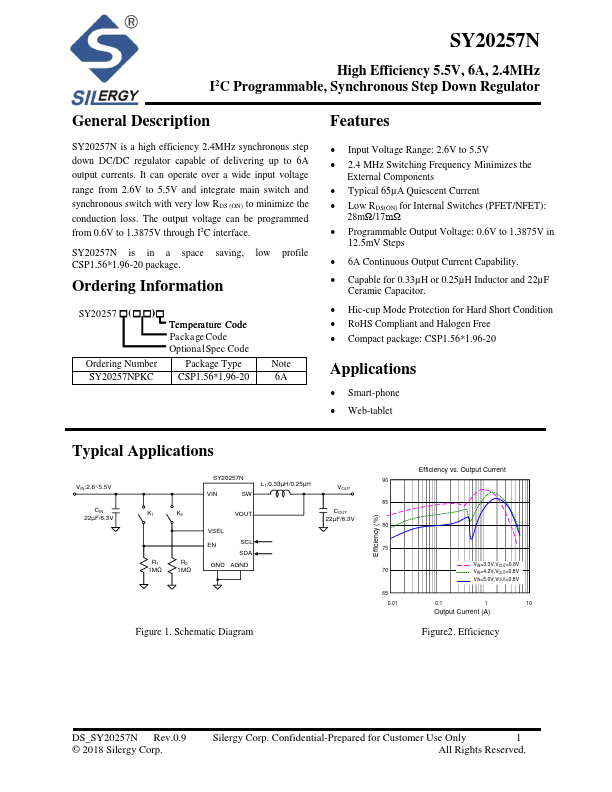

SY20257N Datasheet | Silergy

Description SY20257N is a high efficiency 2.4MHz synchronous step down DC/DC regulator capable of delivering up to 6A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.6V to 1.3875V through I2C interface. SY20257N is in a space saving, low profile CSP1.56- 1.96-20 package. Ordering Information SY20257 - (- - )- Temperature Code Pa cka ge Code Optional Spec Code Ordering Number Package Type Note SY20257NPKC CSP1.56- 1.96-20 6A Features - Input Voltage Range: 2.6V to 5.5V - 2.4 MHz Switching Frequency Minimizes the External ponents - Typical 65µA Quiescent Current - Low RDS(ON) for Internal Switches (PFET/NFET): 28mΩ/17mΩ - Programmable Output Voltage: 0.6V to 1.3875V in 12.5m V Steps - 6A Continuous Output Current Capability. - Capable for 0.33µH or 0.25µH Inductor and 22µF Ceramic Capacitor. - Hic-cup Mode Protection for Hard Short Condition - Ro HS pliant and Halogen Free - pact package: CSP1.56- 1.96-20 Applications - Smart-phone - Web-tablet Typical Applications VIN:2.6~5.5V CIN 22µF/6.3V K1 K2 R1 1MΩ R2 1MΩ L1:0.33µH/0.25µH VOUT VSEL...
