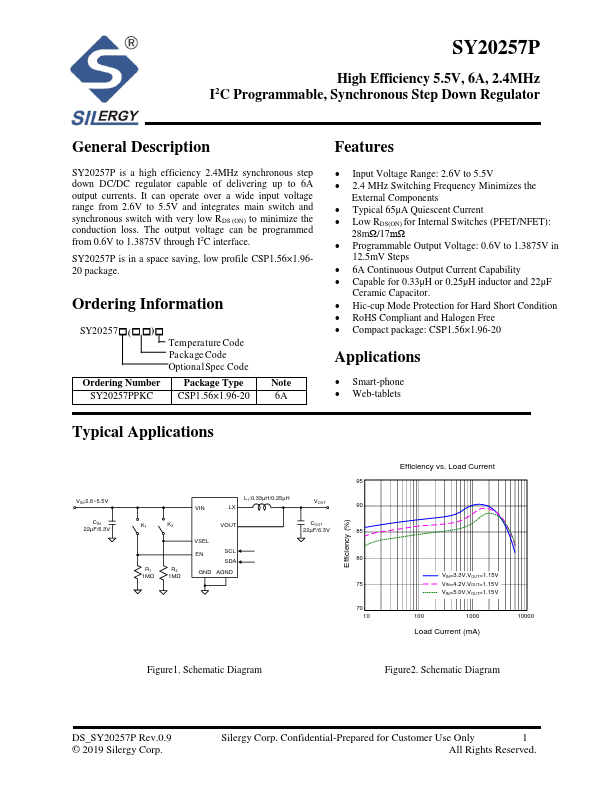

Description SY20257P is a high efficiency 2.4MHz synchronous step down DC/DC regulator capable of delivering up to 6A output currents. It can operate over a wide input voltage range from 2.6V to 5.5V and integrates main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. The output voltage can be programmed from 0.6V to 1.3875V through I2C interface. SY20257P is in a space saving, low profile CSP1.56×1.9620 package. Ordering Information SY20257- (- - )- Tempera ture Code Pa cka ge Code Optional Spec Code Ordering Number Package Type SY20257PPKC CSP1.56×1.96-20 Note 6A Features - Input Voltage Range: 2.6V to 5.5V - 2.4 MHz Switching Frequency Minimizes the External ponents - Typical 65μA Quiescent Current - Low RDS(ON) for Internal Switches (PFET/NFET): 28mΩ/17mΩ - Programmable Output Voltage: 0.6V to 1.3875V in 12.5m V Steps - 6A Continuous Output Current Capability - Capable for 0.33μH or 0.25μH inductor and 22μF Ceramic Capacitor. - Hic-cup Mode Protection for Hard Short Condition - Ro HS pliant and Halogen Free - pact package: CSP1.56×1.96-20 Applications - Smart-phone - Web-tablets Typical Applications VIN:2.6~5.5V CIN 22µF/6.3V K1 R1 1MΩ K2 R2 1MΩ L1:0.33µH/0.25µH VOUT VSEL...
