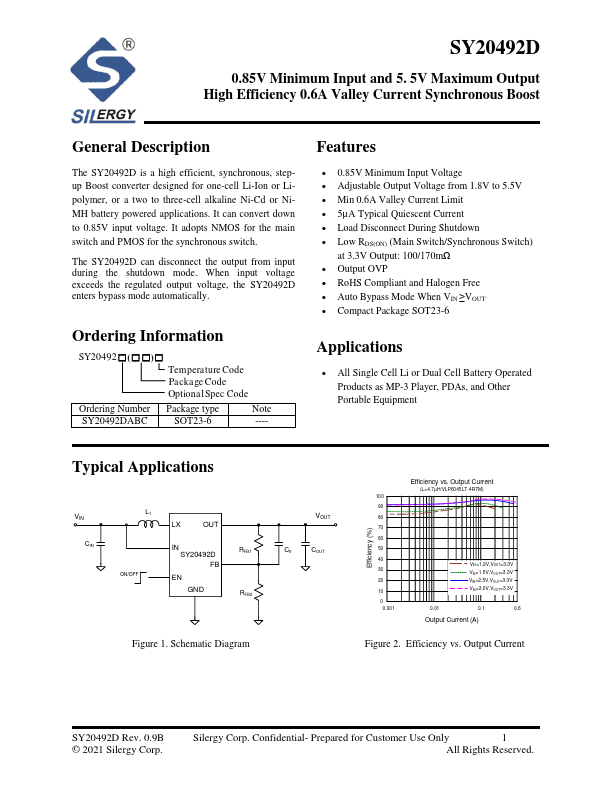

SY20492D
Description
The SY20492D is a high efficient, synchronous, stepup Boost converter designed for one-cell Li-Ion or Lipolymer, or a two to three-cell alkaline Ni-Cd or Ni MH battery powered applications. It can convert down to 0.85V input voltage. It adopts NMOS for the main switch and PMOS for the synchronous switch.
The SY20492D can disconnect the output from input during the shutdown mode. When input voltage exceeds the regulated output voltage, the SY20492D enters bypass mode automatically.
Ordering Information
SY20492- (-
- )- Tempera ture Code Pa cka ge Code Optional Spec Code
Ordering Number Package type
Note
SY20492DABC
SOT23-6
----
Features
- 0.85V Minimum Input Voltage
- Adjustable Output Voltage from 1.8V to 5.5V
- Min 0.6A Valley Current Limit
- 5µA Typical Quiescent Current
- Load Disconnect During Shutdown
- Low RDS(ON) (Main Switch/Synchronous Switch) at 3.3V Output: 100/170mΩ
- Output OVP
- Ro HS pliant and Halogen Free
- Auto Bypass Mode When VIN ≥VOUT
- pact Package...
