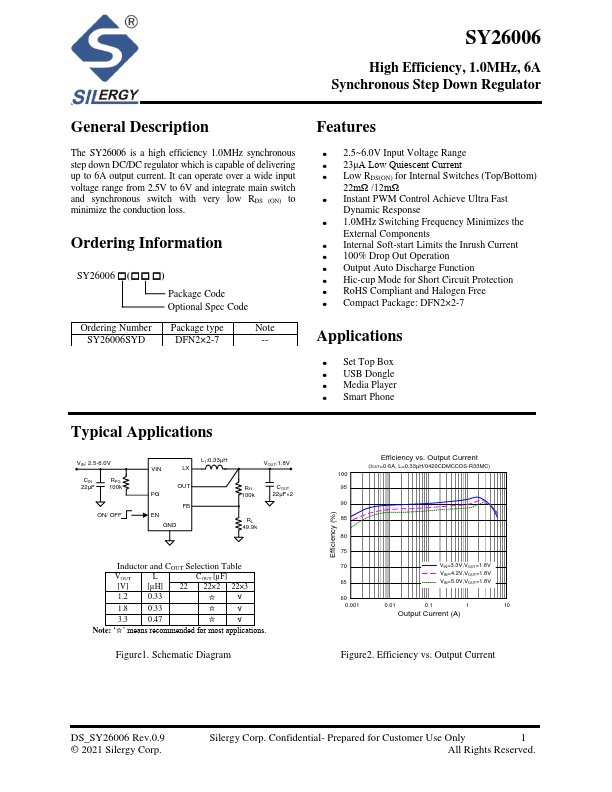

` General Description High Efficiency, 1.0MHz, 6A Synchronous Step Down Regulator Features The SY26006 is a high efficiency 1.0MHz synchronous step down DC/DC regulator which is capable of delivering up to 6A output current. It can operate over a wide input voltage range from 2.5V to 6V and integrate main switch and synchronous switch with very low RDS (ON) to minimize the conduction loss. Ordering Information - (- - - ) Package Code Optional Spec Code Ordering Number Package type Note SY26006SYD DFN2×2-7 -- - 2.5~6.0V Input Voltage Range - 23μA Low Quiescent Current - Low RDS(ON) for Internal Switches (Top/Bottom) 22mΩ /12mΩ - Instant PWM Control Achieve Ultra Fast Dynamic Response - 1.0MHz Switching Frequency Minimizes the External ponents - Internal Soft-start Limits the Inrush Current - 100% Drop Out Operation - Output Auto Discharge Function - Hic-cup Mode for Short Circuit Protection - RoHS pliant and Halogen Free - pact Package: DFN2×2-7 Applications - Set Top...
