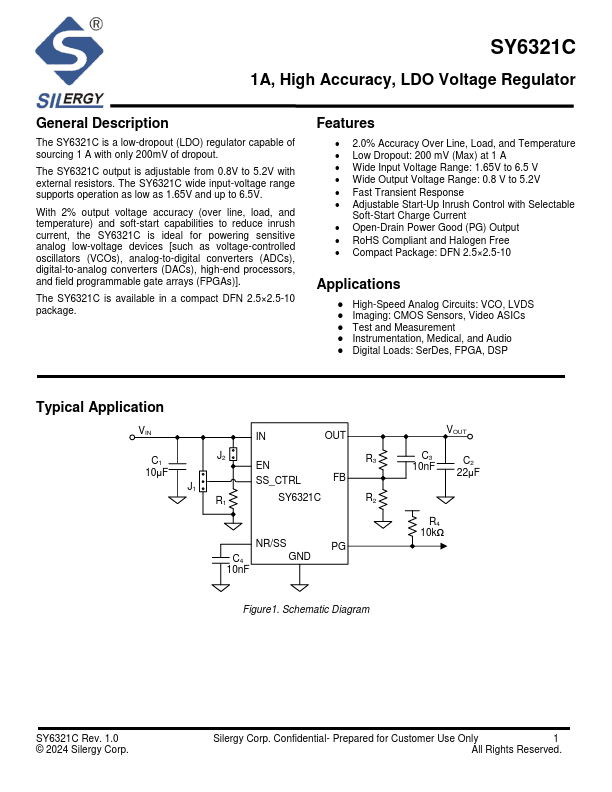

SY6321C Description
The SY6321C is a low-dropout (LDO) regulator capable of sourcing 1 A with only 200mV of dropout. The SY6321C output is adjustable from 0.8V to 5.2V with external resistors. The SY6321C wide input-voltage range supports operation as low as 1.65V and up to 6.5V.
SY6321C Key Features
- 2.0% Accuracy Over Line, Load, and Temperature
- Low Dropout: 200 mV (Max) at 1 A
- Wide Input Voltage Range: 1.65V to 6.5 V
- Wide Output Voltage Range: 0.8 V to 5.2V
- Fast Transient Response
- Adjustable Start-Up Inrush Control with Selectable
- Open-Drain Power Good (PG) Output
- RoHS pliant and Halogen Free
- pact Package: DFN 2.5×2.5-10
