SLM6160 - 9V 6A PWM STEP-UP DC-DC CONVERTER

Description

The SLM6160 device is a high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs.

The SLM6160 includes an integrated 50-mΩ power switch that supports peak currents of up to 6A.

The device is capable of providing an output voltage up to 9V.

Features

  • Input Voltage Range: 2.7 to 5.5V.
  • Adjustable Output Voltage Up to 9V.
  • 6A Switch Current.
  • Up to 85% Efficiency at VIN = 4.2V, VOUT = 9V, and IOUT = 1.0A.
  • Internal 9V 50-mΩ Power MOSFET.
  • 0.1µA Current into VIN Pin during Shutdown.
  • 800kHz Frequency.
  • Built-in Over-Voltage Protection (OVP).
  • Open Protection.
  • Programmable Soft-Start Function.
  • Thermal Shutdowns.
  • Under-Voltage-Lockout.
  • Cy.

📥 Download Datasheet

Datasheet preview – SLM6160

Datasheet Details

Part number SLM6160
Manufacturer Sillumin
File Size 459.35 KB
Description 9V 6A PWM STEP-UP DC-DC CONVERTER
Datasheet download datasheet SLM6160 Datasheet

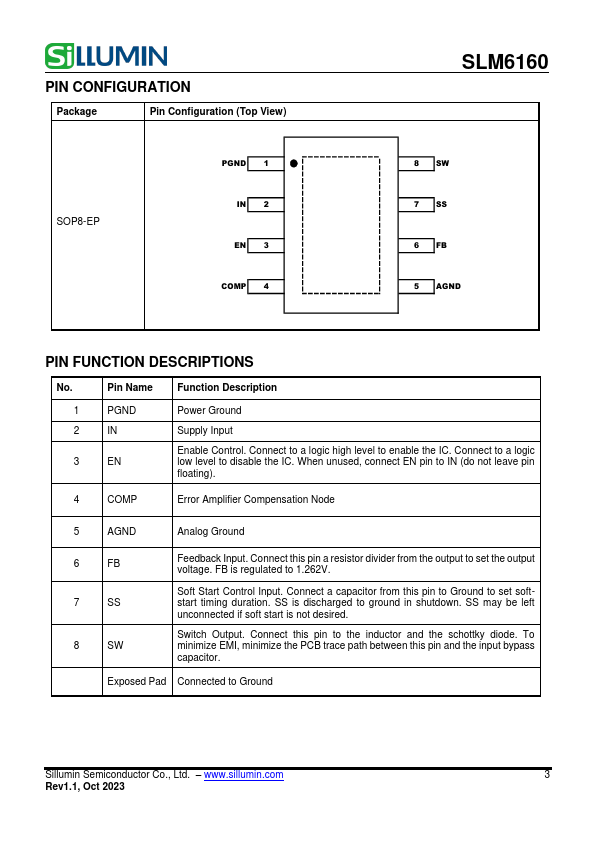

Additional preview pages of the SLM6160 datasheet.

📁 Similar Datasheet

  • SLM6500 - 2A Synchronous Buck Li-Ion Battery Charger (Sola IC)
  • SLM6600 - 3A SynchronIzed LIthIum Battery charger (SLM)
  • SLM-1251 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM-13 - Surface Mount LEDs (Rohm)
  • SLM-13xx - Molded Package Chip LEDs (Rohm)
  • SLM-20T - High Linearity Low Noise Amplifier Module (Sirenza Microdevices)
  • SLM-23 - Surface Mount LEDs (Rohm)
  • SLM-23xx - Molded Package Chip LEDs (Rohm)
  • SLM-245 - High Luminance Type Surface Mount LEDs (Rohm)
  • SLM-x-xxx - LED Assemblies (Bivar)
Other Datasheets by Sillumin

Full PDF Text Transcription

Click to expand full text

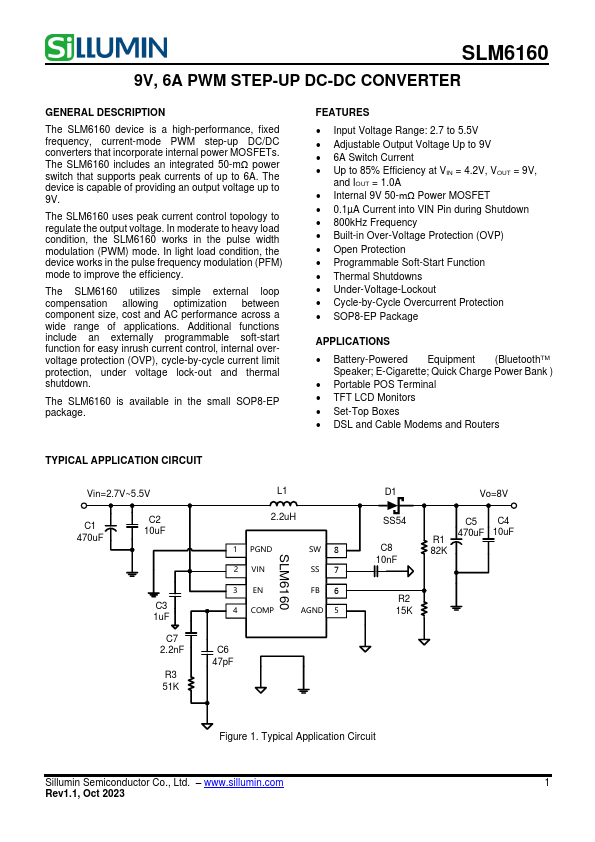

SLM6160 9V, 6A PWM STEP-UP DC-DC CONVERTER GENERAL DESCRIPTION The SLM6160 device is a high-performance, fixed frequency, current-mode PWM step-up DC/DC converters that incorporate internal power MOSFETs. The SLM6160 includes an integrated 50-mΩ power switch that supports peak currents of up to 6A. The device is capable of providing an output voltage up to 9V. The SLM6160 uses peak current control topology to regulate the output voltage. In moderate to heavy load condition, the SLM6160 works in the pulse width modulation (PWM) mode. In light load condition, the device works in the pulse frequency modulation (PFM) mode to improve the efficiency.
