SLM6260 - 24V 6A PWM STEP-UP DC-DC CONVERTER

General Description

The SLM6260 device is a high-performance, fixed frequency, current-mode PWM step-up DC/DC converter that incorporate internal power MOSFETs.

The SLM6260 includes an integrated 50-mΩ power switch that supports peak currents of up to 6A.

The device is capable of providing an output voltage up to 24V.

Key Features

  • Input Voltage Range: 2.7 to 5.5V.
  • Adjustable Output Voltage Up to 24V.
  • 6A Switch Current.
  • Up to 85% Efficiency at VIN = 4.2V, VOUT = 12V, and IOUT = 1.0A.
  • Internal 24V 50-mΩ Power MOSFET.
  • 0.1µA Current into VIN Pin during Shutdown.
  • 800kHz Frequency.
  • Built-in Over-Voltage Protection (OVP).
  • Open Protection.
  • Programmable Soft-Start Function.
  • Thermal Shutdowns.
  • Under-Voltage-Lockout.

📥 Download Datasheet

Datasheet Details

Part number SLM6260
Manufacturer Sillumin
File Size 436.74 KB
Description 24V 6A PWM STEP-UP DC-DC CONVERTER
Datasheet download datasheet SLM6260 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SLM6500 2A Synchronous Buck Li-Ion Battery Charger Sola IC
SLM6600 3A SynchronIzed LIthIum Battery charger SLM
SLM-1251 High Luminance Type Surface Mount LEDs Rohm
SLM-13 Surface Mount LEDs Rohm
SLM-13xx Molded Package Chip LEDs Rohm

Other Datasheets by Sillumin

Part Number Description
SLM6240 24V 4A PWM STEP-UP DC-DC CONVERTER
SLM6160 9V 6A PWM STEP-UP DC-DC CONVERTER
SLM1909 Motor Driver
SLM2001S 200V Half Bridge Driver
SLM2003S 200V Half-Bridge Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

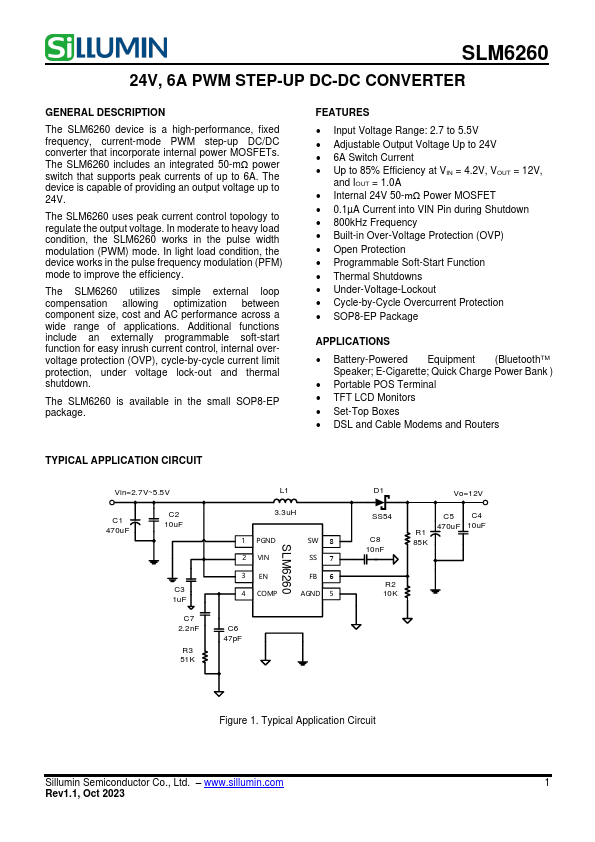

SLM6260 24V, 6A PWM STEP-UP DC-DC CONVERTER GENERAL DESCRIPTION The SLM6260 device is a high-performance, fixed frequency, current-mode PWM step-up DC/DC converter that incorporate internal power MOSFETs. The SLM6260 includes an integrated 50-mΩ power switch that supports peak currents of up to 6A. The device is capable of providing an output voltage up to 24V. The SLM6260 uses peak current control topology to regulate the output voltage. In moderate to heavy load condition, the SLM6260 works in the pulse width modulation (PWM) mode. In light load condition, the device works in the pulse frequency modulation (PFM) mode to improve the efficiency.
