SLMi331 - 1.5A Output Current Opto-Compatible Single Channel Isolated IGBT Gate Driver

Sillumin

General Description

The SLMi331 isolated driver is an advanced optocompatible single channel isolated IGBT gate driver with active protection

📥 Download Datasheet

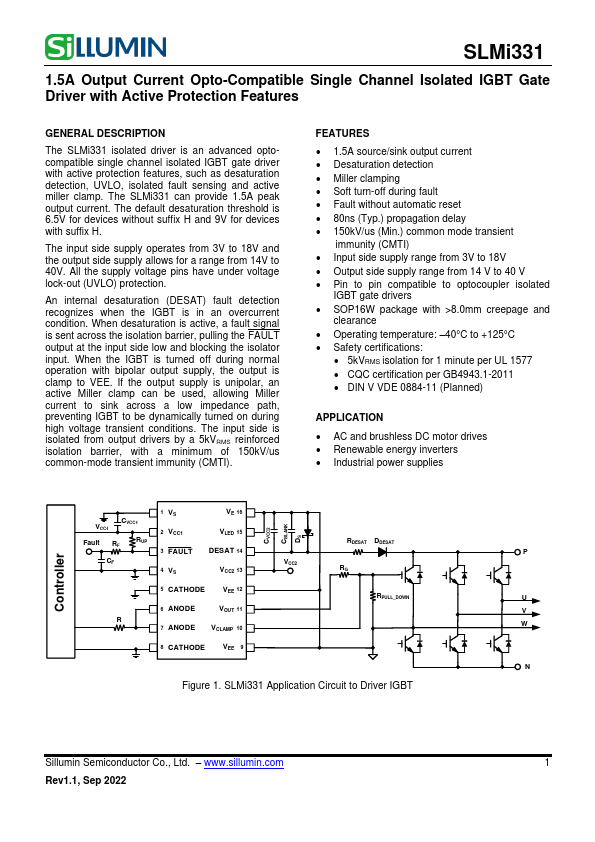

SLMi331 1.5a output current opto-compatible single channel isolated igbt gate driver by Sillumin - Datasheet Preview

Datasheet Details

Part number	SLMi331
Manufacturer	Sillumin
File Size	451.54 KB
Description	1.5A Output Current Opto-Compatible Single Channel Isolated IGBT Gate Driver
Datasheet	SLMi331 Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
SLM-1251	High Luminance Type Surface Mount LEDs	Rohm
SLM-13	Surface Mount LEDs	Rohm
SLM-13xx	Molded Package Chip LEDs	Rohm
SLM-20T	High Linearity Low Noise Amplifier Module	Sirenza Microdevices
SLM-23	Surface Mount LEDs	Rohm

Other Datasheets by Sillumin

Part Number	Description
SLMi332	2.5A Output Current Opto-Compatible Single Channel Isolated IGBT Gate Driver
SLMi333	2.5A Output Current Opto-Compatible Single Channel Isolated IGBT Gate Driver
SLMi334	4A Output Current Opto-Compatible Single Channel Isolated IGBT Gate Driver
SLMi8230	Dual Channel Gate Driver
SLMi8231	Dual Channel Gate Driver

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

SLMi331 1.5A Output Current Opto-Compatible Single Channel Isolated IGBT Gate Driver with Active Protection Features GENERAL DESCRIPTION The SLMi331 isolated driver is an advanced optocompatible single channel isolated IGBT gate driver with active protection features, such as desaturation detection, UVLO, isolated fault sensing and active miller clamp. The SLMi331 can provide 1.5A peak output current. The default desaturation threshold is 6.5V for devices without suffix H and 9V for devices with suffix H. The input side supply operates from 3V to 18V and the output side supply allows for a range from 14V to 40V. All the supply voltage pins have under voltage lock-out (UVLO) protection.
