SLMi333 Datasheet | Sillumin

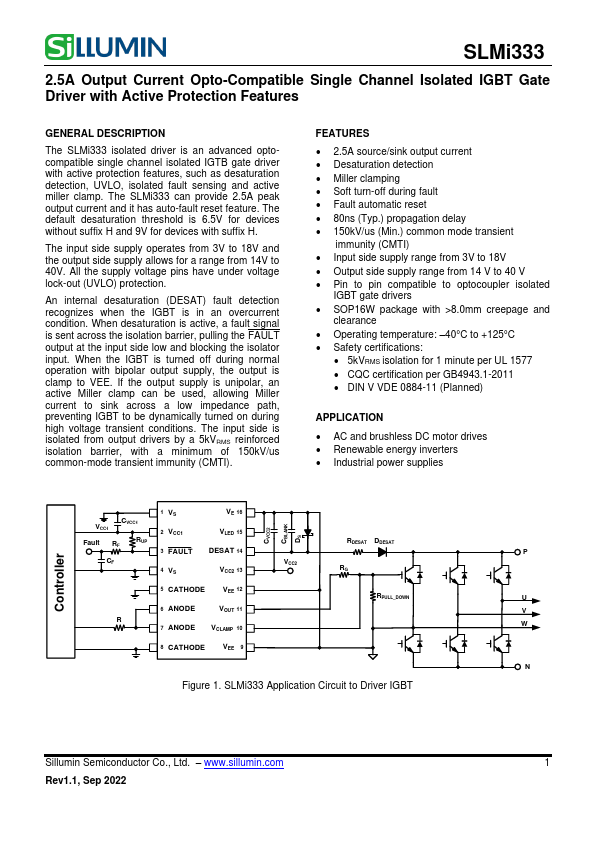

Features GENERAL DESCRIPTION The SLMi333 isolated driver is an advanced optopatible single channel isolated IGTB gate driver with active protection features , such as desaturation detection, UVLO, isolated fault sensing and active miller clamp. The SLMi333 can provide 2.5A peak output current and it has auto-fault reset feature . The default desaturation threshold is 6.5V for devices without suffix H and 9V for devices with suffix H. The input side supply operates from 3V to 18V and the output side supply allows for a range from 14V to 40V. All the supply voltage pins have under voltage lock-out (UVLO) protection. An internal desaturation (DESAT) fault detection recognizes when the IGBT is in an overcurrent condition. When desaturation is active, a fault signal is sent across the isolation barrier, pulling the FAULT output at the input side low and blocking the isolator input. When the IGBT is turned off during normal operation with bipolar output supply, the output is clamp to VEE. If the output supply is unipolar, an active Miller clamp can be used, allowing Miller current to sink across a low impedance path, preventing IGBT to be dynamically turned on during high voltage transient conditions. The input side is isolated from output drivers by a 5k VRMS reinforced isolation barrier, with a minimum of 150k V/us mon-mode transient immunity (CMTI). FEATURES - 2.5A source/sink output current - Desaturation detection - Miller clamping - Soft turn-off during fault - Fault automatic reset - 80ns (Typ.) propagation delay - 150k V/us (Min.) mon mode transient immunity (CMTI) - Input side supply range from 3V to 18V - Output side supply range from 14 V to 40 V - Pin to pin patible to optocoupler isolated IGBT gate drivers - SOP16W package with >8.0mm creepage and clearance - Operating temperature: - 40°C to +125°C - Safety certifications: - 5k VRMS isolation for 1 minute per UL 1577 - CQC certification per GB4943.1-2011 - DIN V VDE 0884-11 (Planned) APPLICATION - AC and...
