SiLM27511H - Low-Side Gate Driver

Description

The SiLM27511H series single-channel, high-speed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches.

Features

  • Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions.
  • 4 A peak source and 5 A peak sink current.
  • Fast propagation delay (18 ns typical).
  • Fast rise time (9 ns typical).
  • Fast fall time (6 ns typical).
  • 13.5V to 20V single supply range.
  • Under-voltage lockout.
  • TTL and CMOS compatible input logic threshold.
  • Dual input design (choice of an inverting or non- inverting driver configuration).
  • Output held low when inp.

📥 Download Datasheet

Datasheet preview – SiLM27511H

Datasheet Details

Part number SiLM27511H
Manufacturer Sillumin
File Size 624.01 KB
Description Low-Side Gate Driver
Datasheet download datasheet SiLM27511H Datasheet

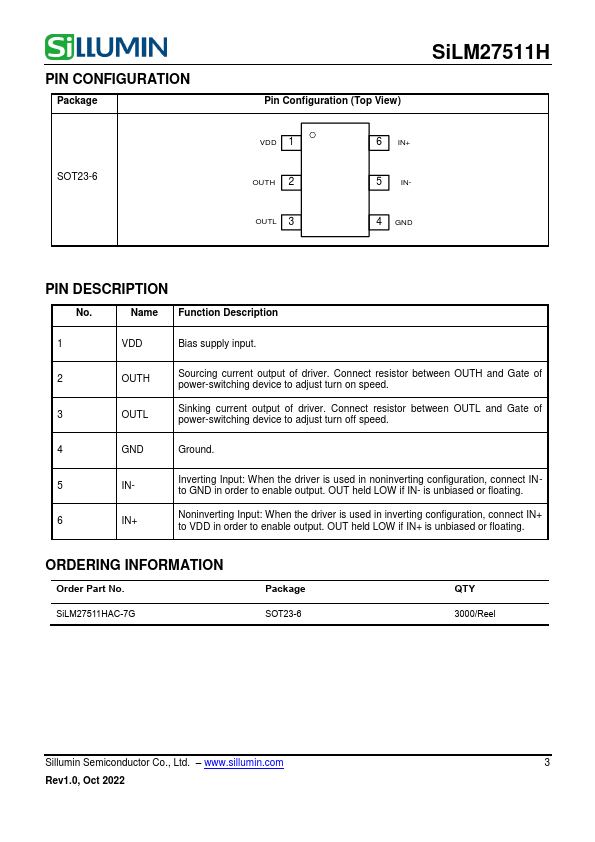

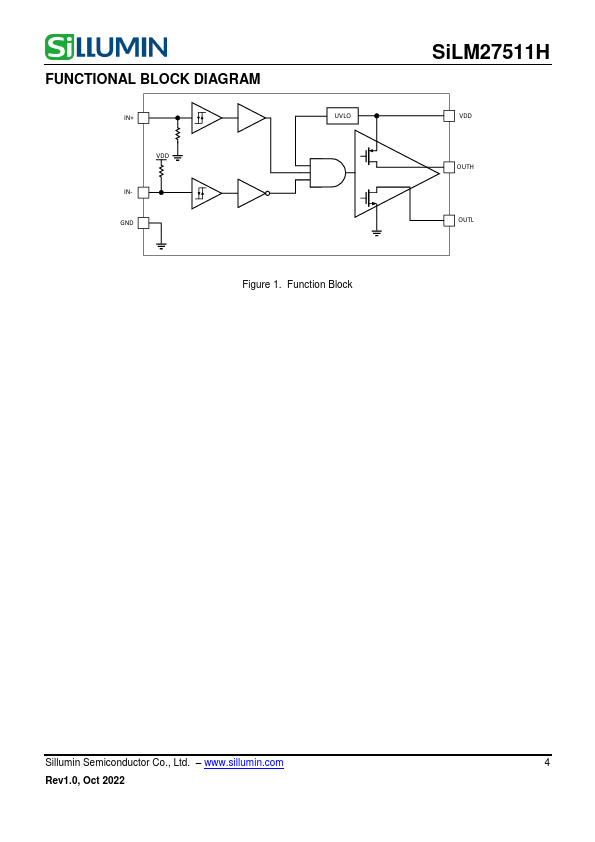

Additional preview pages of the SiLM27511H datasheet.

📁 Similar Datasheet

Other Datasheets by Sillumin
  • SiLM27517H-AQ - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27519 - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27523N - Dual-Channel High-Speed Low-Side Gate Driver
  • SiLM27524N - Low-Side Gate Driver
  • SiLM27531H-AQ - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27273 - Single-Channel High-Speed Low-Side Gate Driver
  • SiLM27624LN - 30V 5A Dual-Channel Low-Side Gate Driver
  • SiLM2660 - Battery Pack Front-End Charge/Discharge High-Side NFET Driver

Full PDF Text Transcription

Click to expand full text

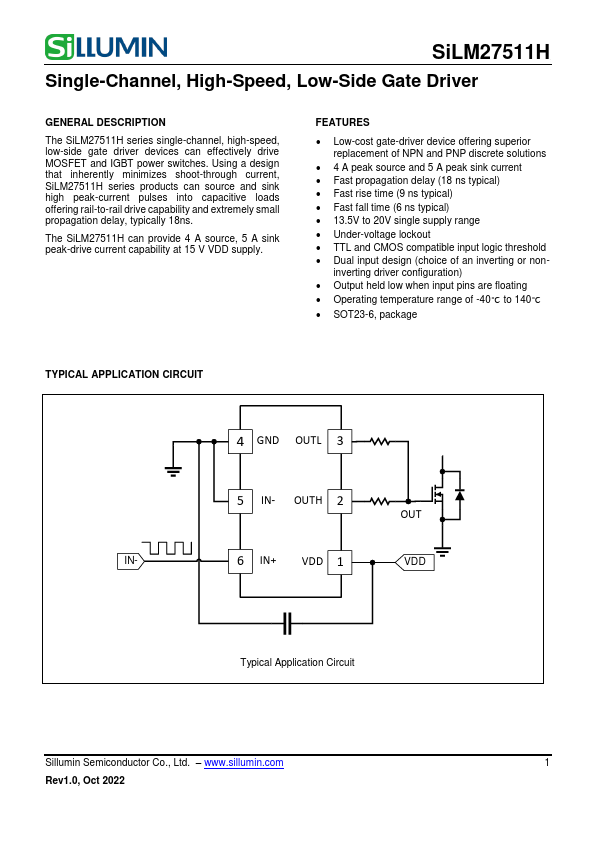

SiLM27511H Single-Channel, High-Speed, Low-Side Gate Driver GENERAL DESCRIPTION The SiLM27511H series single-channel, high-speed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches. Using a design that inherently minimizes shoot-through current, SiLM27511H series products can source and sink high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18ns. The SiLM27511H can provide 4 A source, 5 A sink peak-drive current capability at 15 V VDD supply.
