SiLM27519 Datasheet Single-channel High-speed Low-side Gate Driver

Manufacturer: Sillumin

Overview: SiLM27519 Single-Channel, High-Speed, Low-Side Gate Driver GENERAL.

Datasheet Details

Part number SiLM27519
Manufacturer Sillumin
File Size 317.48 KB
Description Single-Channel High-Speed Low-Side Gate Driver
Datasheet SiLM27519-Sillumin.pdf

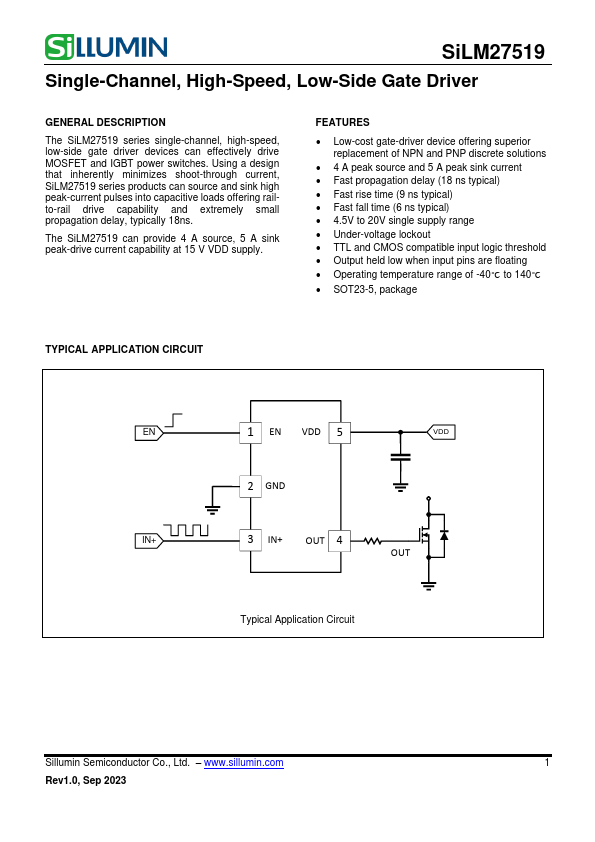

General Description

The SiLM27519 series single-channel, high-speed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches.

Using a design that inherently minimizes shoot-through current, SiLM27519 series products can source and sink high peak-current pulses into capacitive loads offering railto-rail drive capability and extremely small propagation delay, typically 18ns.

The SiLM27519 can provide 4 A source, 5 A sink peak-drive current capability at 15 V VDD supply.

Key Features

  • Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions.
  • 4 A peak source and 5 A peak sink current.
  • Fast propagation delay (18 ns typical).
  • Fast rise time (9 ns typical).
  • Fast fall time (6 ns typical).
  • 4.5V to 20V single supply range.
  • Under-voltage lockout.
  • TTL and CMOS compatible input logic threshold.
  • Output held low when input pins are floating.
  • Operating temperature.
