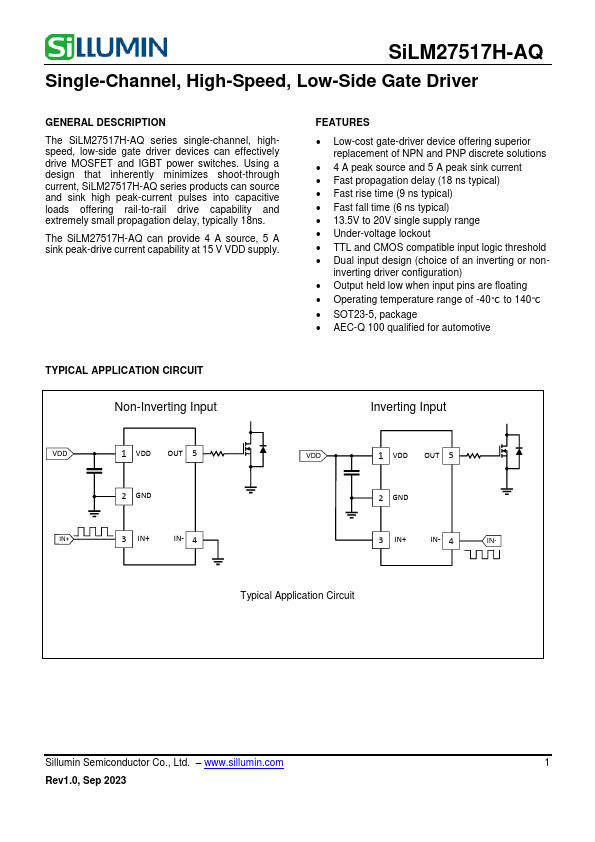

SiLM27517H-AQ Datasheet Single-channel High-speed Low-side Gate Driver

Manufacturer: Sillumin

Overview: SiLM27517H-AQ Single-Channel, High-Speed, Low-Side Gate Driver.

Datasheet Details

Part number SiLM27517H-AQ
Manufacturer Sillumin
File Size 592.38 KB
Description Single-Channel High-Speed Low-Side Gate Driver
Datasheet SiLM27517H-AQ-Sillumin.pdf

General Description

The SiLM27517H-AQ series single-channel, highspeed, low-side gate driver devices can effectively drive MOSFET and IGBT power switches.

Using a design that inherently minimizes shoot-through current, SiLM27517H-AQ series products can source and sink high peak-current pulses into capacitive loads offering rail-to-rail drive capability and extremely small propagation delay, typically 18ns.

The SiLM27517H-AQ can provide 4 A source, 5 A sink peak-drive current capability at 15 V VDD supply.

Key Features

  • Low-cost gate-driver device offering superior replacement of NPN and PNP discrete solutions.
  • 4 A peak source and 5 A peak sink current.
  • Fast propagation delay (18 ns typical).
  • Fast rise time (9 ns typical).
  • Fast fall time (6 ns typical).
  • 13.5V to 20V single supply range.
  • Under-voltage lockout.
  • TTL and CMOS compatible input logic threshold.
  • Dual input design (choice of an inverting or non- inverting driver configuration).
  • Output held low when inp.
