SiLM6000S - PLC Receiver

General Description

The SiLM6000S is an integrated power line communication (PLC) receiver that is designed for photovoltaic array rapid shutdown.

Key Features

  • Receiver supports SunSpecTM Alliance “Communication Signal for Rapid Shutdown” power line communication protocol.
  • Provides 1.3V output voltage during system keep alive signal is absent.
  • Operates with PV voltage from 10.5V to 110V.
  • Integrated NFET driver.
  • Support flash test.
  • TSSOP14-EP package.
  • Junction temperature range: -40℃ to 125℃.

📥 Download Datasheet

Datasheet Details

Part number SiLM6000S
Manufacturer Sillumin
File Size 223.82 KB
Description PLC Receiver
Datasheet download datasheet SiLM6000S Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
SIL05-1A72-71D Single-In-Line Reed Relays MEDER
SIL05-1A72-71L Relays MEDER
SIL05-1A72-74L Relays MEDER
SIL05N06 N-CHANNEL MOSFET MCC
SIL05N06A N-Channel Power MOSFET MCC

Other Datasheets by Sillumin

Part Number Description
SiLM6000 PLC Receiver
SiLM6120 High Performance MPP Tracking Buck Controller
SiLM6582 High Efficiency 95V 0.5A Synchronous Step Down Regulator
SiLM6583 High Efficiency 95V 0.5A Synchronous Step Down Regulator
SiLM6880 80V 1.0A Synchronous Step Down Regulator

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

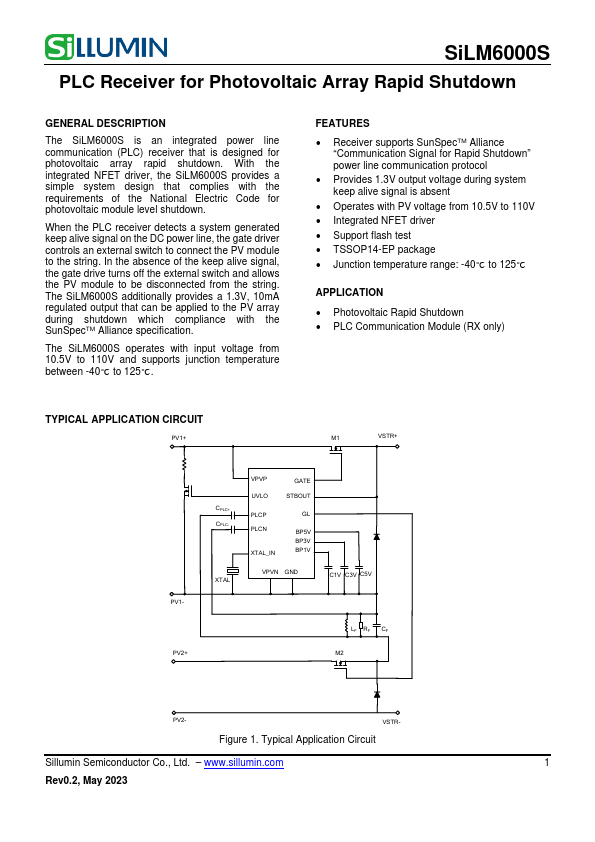

SiLM6000S PLC Receiver for Photovoltaic Array Rapid Shutdown GENERAL DESCRIPTION The SiLM6000S is an integrated power line communication (PLC) receiver that is designed for photovoltaic array rapid shutdown. With the integrated NFET driver, the SiLM6000S provides a simple system design that complies with the requirements of the National Electric Code for photovoltaic module level shutdown. When the PLC receiver detects a system generated keep alive signal on the DC power line, the gate driver controls an external switch to connect the PV module to the string. In the absence of the keep alive signal, the gate drive turns off the external switch and allows the PV module to be disconnected from the string. The SiLM6000S additionally provides a 1.
