Slkor 2SD596
NPN Transistors
| Part No. | 2SD596 |
|---|---|
| Datasheet | 2SD596 Download |
| Manufacturer |  Slkor |
| Description | NPN Transistors |
| Buy | Stock & Price |

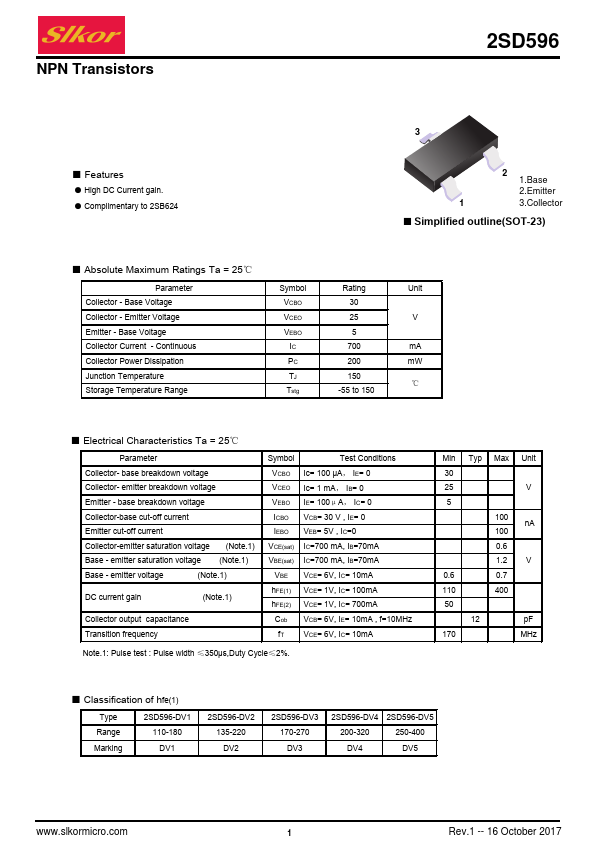

FEATURES
● High DC Current gain.● Complimentary to 2SB624 3 2 1.Base 2.Emitter 1 3.Collector

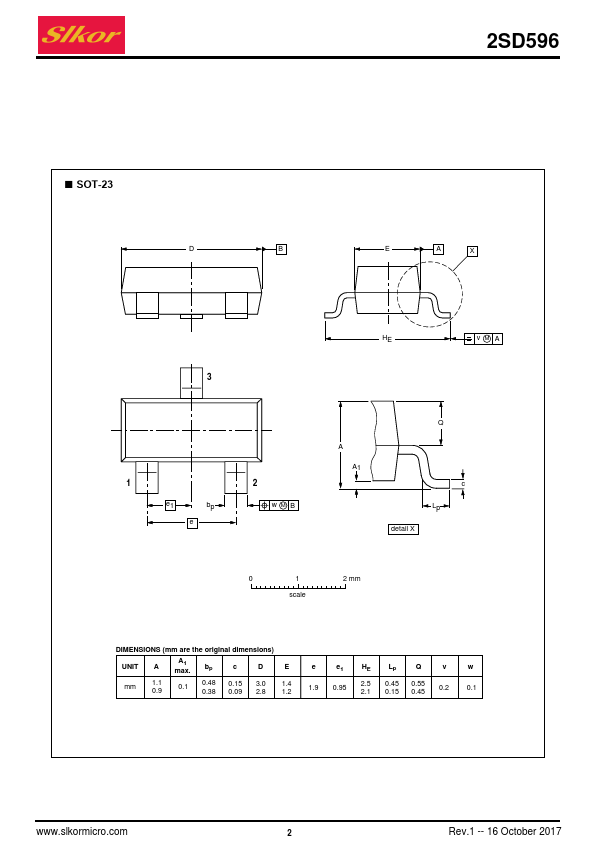

● Simplified outline(SOT-23)
●
ABSOLUTE MAXIMUM RATINGS
Ta = 25℃ Parameter Collector - Base Voltage Collector - Emitter Voltage Emitter - Base Voltage Collector Current - Continuous Collector Power Dissipation Junction Temperature Storage Temperature Range Symbol Rating Unit VCBO 30 VCEO 25 V VEBO 5 IC 700 mA PC 200 mW TJ 150 ℃ Tstg -55 to 150●
ELECTRICAL CHARACTERISTICS
Ta = 25℃ Parameter Collector- base breakdown voltage Collector- emitter breakdown voltage Emitter - base breakdown voltage Collector-base cut-off current Emitter cut-off current Collector-emitter saturation voltage (Note.1) Base - emitter saturation voltage (Note.1) Base - emitter voltage (Note.1) DC current gain (Note.1) Collector output capacitance Transition frequency Symbol Test Conditions VCBO Ic= 100 μA， IE= 0 VCEO Ic= 1 mA， IB= 0 VEBO IE= 100μA， IC= 0 ICBO VCB= 30 V , IE= 0 IEBO VEB= 5V , IC=0 VCE(sat) IC=700 mA, IB=70...
