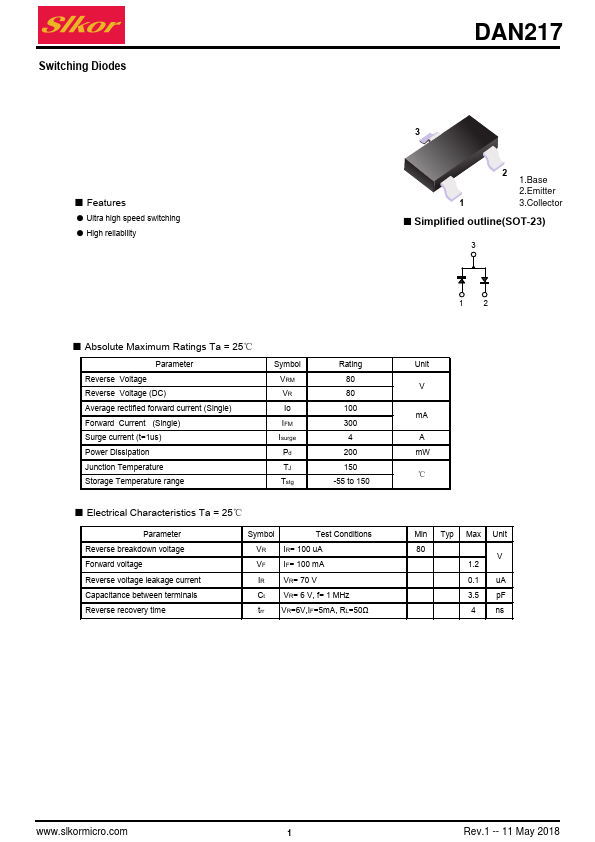

DAN217
Features
- Ultra high speed switching
- High reliability
2 1.Base
2.Emitter
3.Collector
- Simplified outline(SOT-23)
- Absolute Maximum Ratings Ta = 25℃
Parameter Reverse Voltage Reverse Voltage (DC) Average rectified forward current (Single) Forward Current (Single) Surge current (t=1us) Power Dissipation Junction Temperature Storage Temperature range
Symbol VRM VR Io IFM Isurge Pd TJ Tstg
Rating 80 80 100 300 4 200 150
-55 to 150
- Electrical Characteristics Ta = 25℃
Parameter Reverse breakdown voltage Forward voltage Reverse voltage leakage current Capacitance between terminals Reverse recovery time
Symbol
Test Conditions
VR IR= 100 u A
VF IF= 100 m A
VR= 70 V
Ct VR= 6 V, f= 1 MHz trr VR=6V,IF=5m A, RL=50Ω
Unit V m A A m W ℃
Min Typ Max Unit 80
V 1.2 0.1 u A 3.5 p F 4 ns
.slkormicro.
Rev.1 -- 11 May 2018
FORWARD CURRENT:IF(m A)
FORWARD VOLTAGE:VF(m V)
CAPACITANCE BETWEEN TERMINALS:Ct(p F)
REVERSE CURRENT:IR(n A)

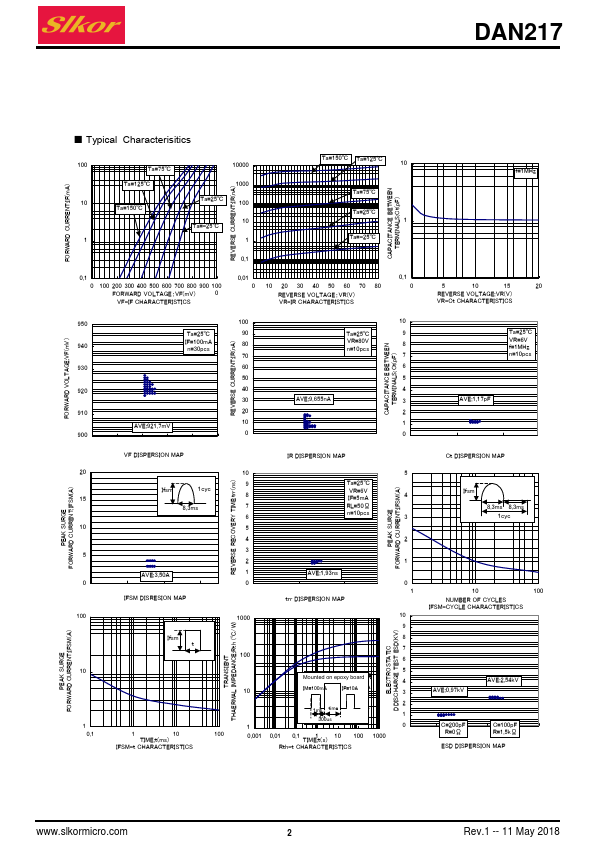

- Typical Characterisitics...
