MBR0520W Datasheet Schottky Barrier Rectifiers

Manufacturer: Slkor Micro Semicon

Overview: Schottky Barrier Rectifiers ■.

Datasheet Details

Part number	MBR0520W
Manufacturer	Slkor Micro Semicon
File Size	593.09 KB
Description	Schottky Barrier Rectifiers
Datasheet	MBR0520W-Slkor.pdf

s.

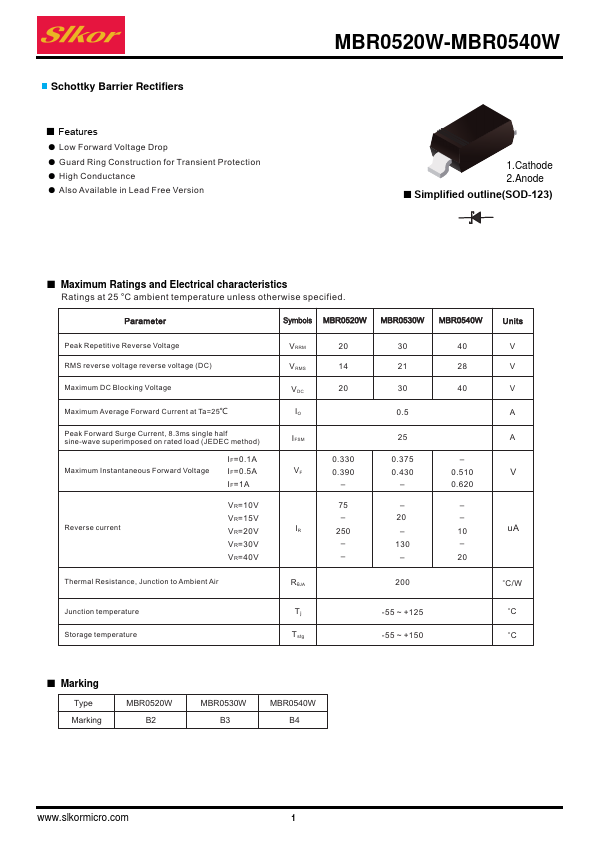

Low Forward Voltage Drop.
Guard Ring Construction for Transient Protection.
High Conductance.
Also Available in Lead Free Version MBR0520W-MBR0540W 1.Cathode 2.Anode.

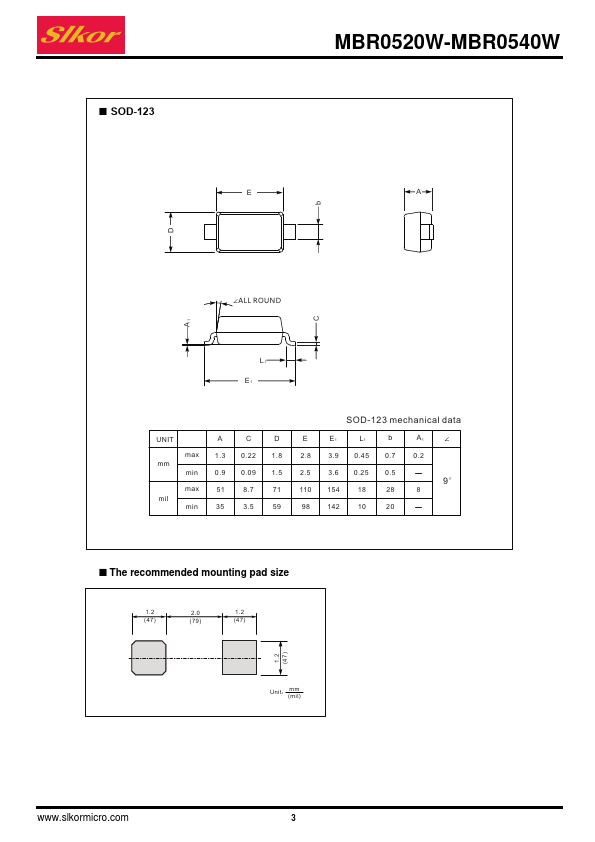

Simplified outline(SOD-123).
Maximum Ratings and Electrical characteristics Ratings at 25 °C ambient temperature unless otherwise specified. Parameter Symbols MBR0520W MBR0530W MBR0540W Units Peak Repetitive Reverse Voltage RMS reverse voltage reverse voltage (DC) Maximum DC Blocking Voltage.
