MBR0520
MBR0520 is manufactured by Yangjie Electronic.

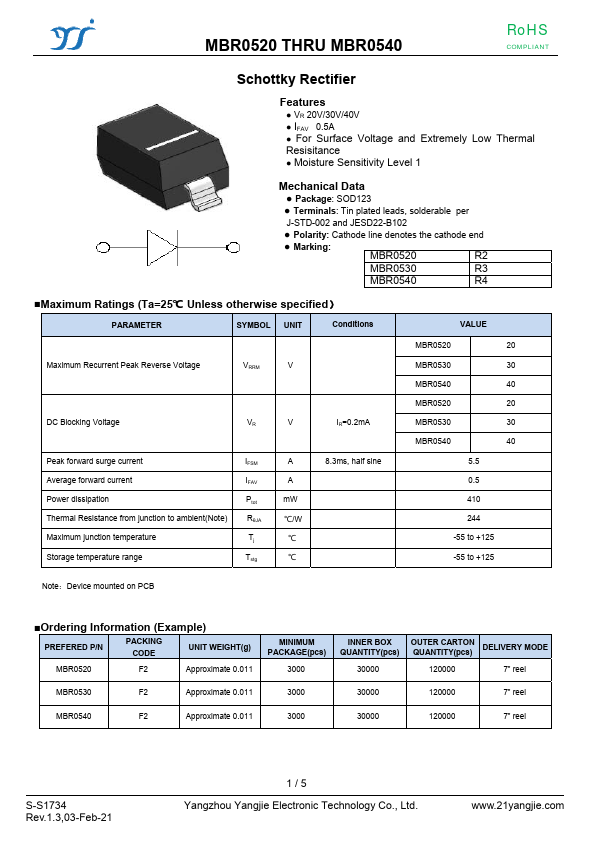

MBR0520 THRU MBR0540
RoHS
PLIANT
Schottky Rectifier
Features
- VR 20V/30V/40V
- IFAV 0.5A
- For Surface Voltage and Extremely Low Thermal Resisitance
- Moisture Sensitivity Level 1
Mechanical Data
- Package: SOD123
- Terminals: Tin plated leads, solderable per
J-STD-002 and JESD22-B102
- Polarity: Cathode line denotes the cathode end
- Marking:
R2
MBR0530
R3
MBR0540
R4
- Maximum Ratings (Ta=25℃ Unless otherwise specified）
PARAMETER
SYMBOL UNIT
Conditions
VALUE
Maximum Recurrent Peak Reverse Voltage
VRRM
DC Blocking Voltage
IR=0.2mA
Peak forward surge current Average forward current Power dissipation Thermal Resistance from junction to...
