SSD1311 - OLED/PLED Segment/Common Driver

Datasheet Summary

Description

7 2

Features

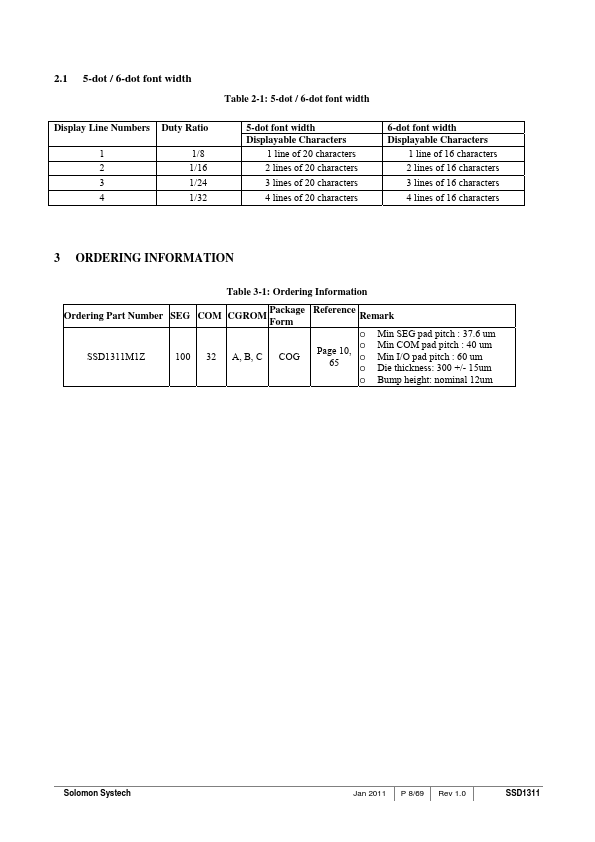

2.1 5-DOT / 6-DOT FONT WIDTH 8 3.

Solomon Systech

📥 Download Datasheet

Datasheet Details

Part number	SSD1311
Manufacturer	Solomon Systech
File Size	829.33 KB
Description	OLED/PLED Segment/Common Driver
Datasheet	SSD1311 Datasheet
Additional preview pages of the SSD1311 datasheet.

📁 Similar Datasheet

SSD1303 - 132 x 64 Dot Matrix OLED/PLED Segment/Common Driver (Solomon)
SSD1327 - OLED/PLED Segment/Common Driver (Solomon)
SSD1332 - OLED/PLED Segment/Common Driver (Solomon)
SSD1353 - OLED/PLED Segment/Common Driver (Solomon)
SSD1360 - OLED/PLED Segment/Common Driver (Solomon)
SSD13P06-C - P-Channel Enhancement Mode Power MOSFET (SeCoS)
SSD103 - Surface-mount Power Transistor (ETC)
SSD1030P - P-Channel Enhancement Mode MOSFET (South Sea Semiconductor)
SSD10N10J-C - N-Ch Enhancement Mode Power MOSFET (SeCoS)
SSD125N03S-C - N-Channel Fast Switching MOSFET (SeCoS)

Other Datasheets by Solomon Systech

SSD1312 - OLED/PLED Segment/Common Driver
SSD1315 - 128 x 64 Dot Matrix OLED/PLED Segment/Common Driver
SSD1316 - OLED/PLED Segment/Common Driver
SSD1317 - 128 x 96 Dot Matrix OLED/PLED Segment/Common Driver
SSD1301 - OLED/PLED segment / common driver
SSD1305 - OLED/PLED Segment/Common Driver
SSD1306 - 128 x 64 Dot Matrix OLED/PLED Segment/Common Driver
SSD1306B - OLED/PLED Segment/Common Driver

Full PDF Text Transcription

Click to expand full text

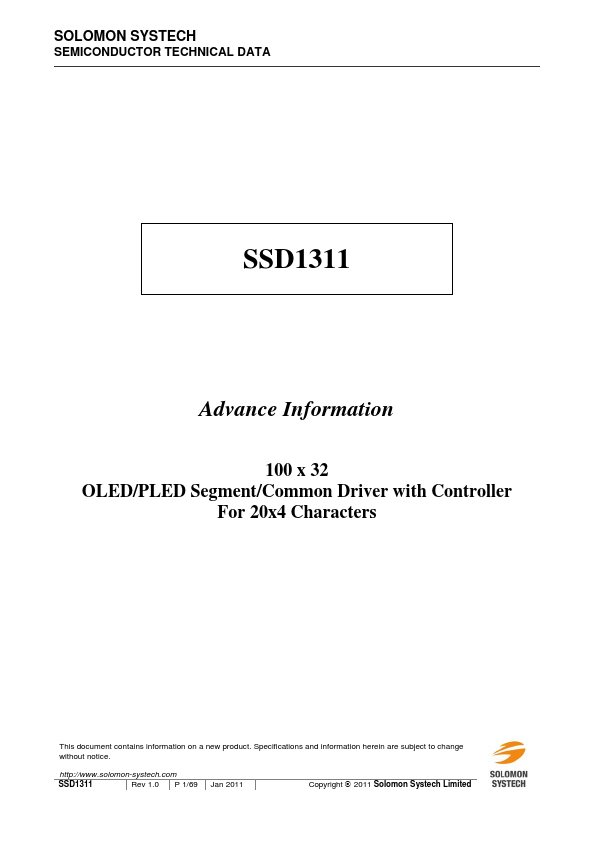

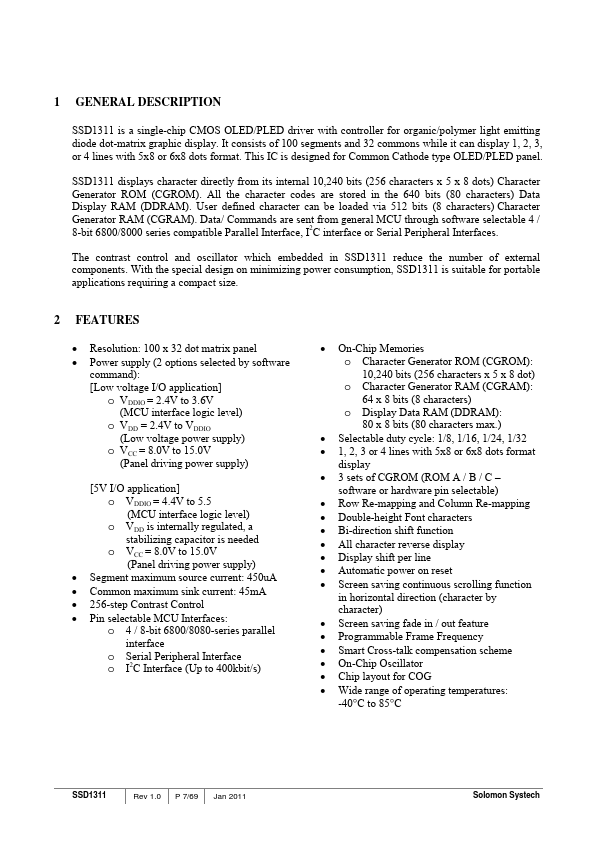

SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1311 Advance Information 100 x 32 OLED/PLED Segment/Common Driver with Controller For 20x4 Characters This document contains information on a new product. Specifications and information herein are subject to change without notice. http://www.solomon-systech.com SSD1311 Rev 1.0 P 1/69 Jan 2011 Copyright © 2011 Solomon Systech Limited Appendix: IC Revision history of SSD1311 Specification Version 0.10 1st Release 1.0 Change to Advance info Change Items Effective Date 28-Sep-10 21-Jan-11 Solomon Systech Jan 2011 P 2/69 Rev 1.0 SSD1311 CONTENTS 1 GENERAL DESCRIPTION ....................................................................................................7 2 FEATURES......................................................
