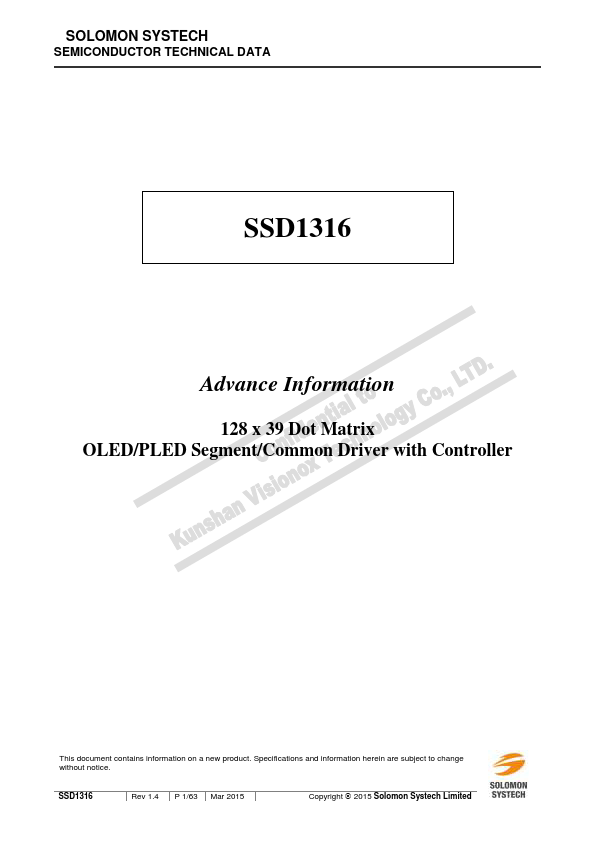

Overview: SOLOMON SYSTECH SEMICONDUCTOR TECHNICAL DATA SSD1316 Advance Information 128 x 39 Dot Matrix OLED/PLED Segment/mon Driver with Controller This document contains information on a new product. Specifications and information herein are subject to change without notice. SSD1316 Rev 1.4 P 1/63 Mar 2015 Copyright 2015 Solomon Systech Limited Appendix: IC Revision history of SSD1316 Specification Version 0.10 1st Release Change Items 1.0 Advance Information Release Modify from SSD1316 Product Preview R0.10 Update the Charge Pump 8D mand Update the DC characteristics Update the AC characteristics 1.1 Advance Information Release Modify from SSD1316 Advance Information R1.0 Revise typo for ADh mand for internal IREF selection Update VBAT and the Charge Pump 8Dh mand Update the DC characteristics Revise Figure 9.10 and Figure 9.11 for continuous scrolling Add Content Scrolling Setup details 1.2 Advance Information Release Modify from SSD1316 Advance Information R1.1 Update Contrast Control 81h mand Update Typical Frequency in AC characteristics 1.
| Part number | SSD1316 |
|---|---|
| Manufacturer | Solomon Systech |
| File Size | 1.51 MB |
| Description | OLED/PLED Segment/Common Driver |
| Datasheet | SSD1316-SolomonSystech.pdf |
|
|
|

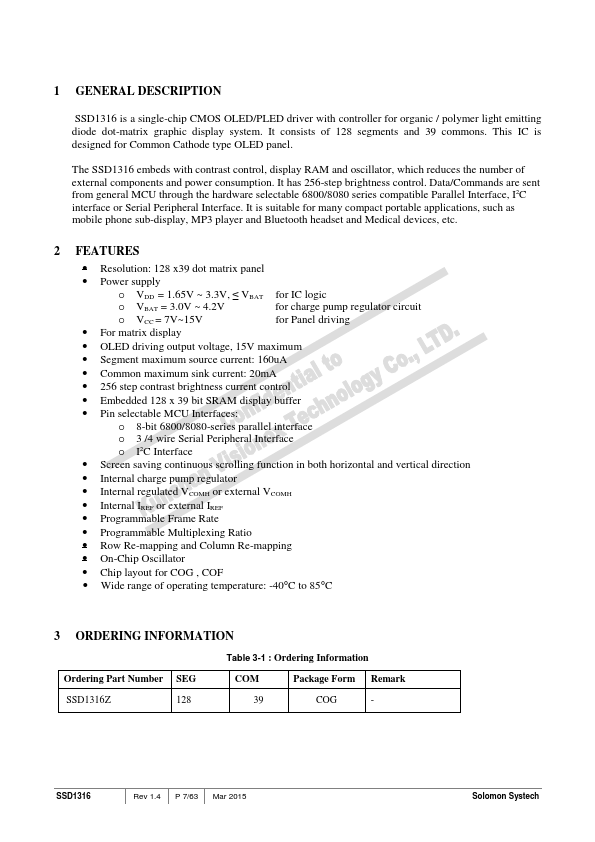

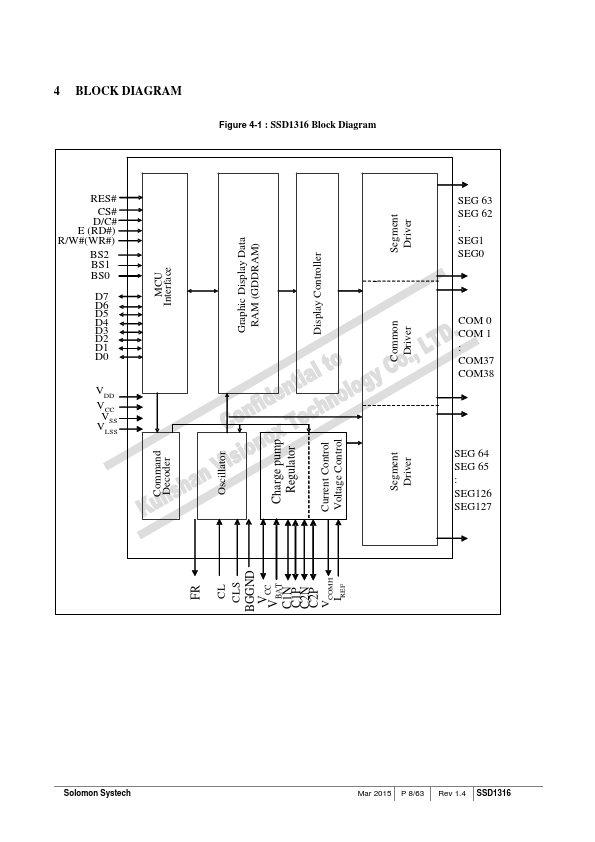

in ITO resistance requirements Update remark in Application example 1.4 Update VH value setting description Update External or Internal VH selection description Effective Date 15-Jul-11 10-Oct-11 16-Apr-12 08-Nov-13 24-Jun-14 Solomon Systech Mar 2015 P 2/63 Rev 1.4 SSD1316 CONTENTS 1 GENERAL DESCRIPTION ........................................................................................................
7 2
