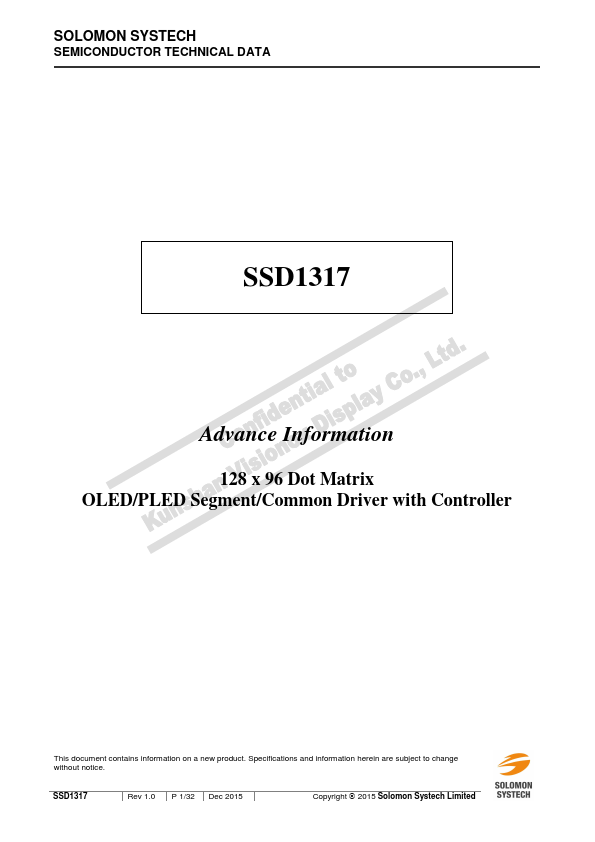

SSD1317 Datasheet | Solomon Systech

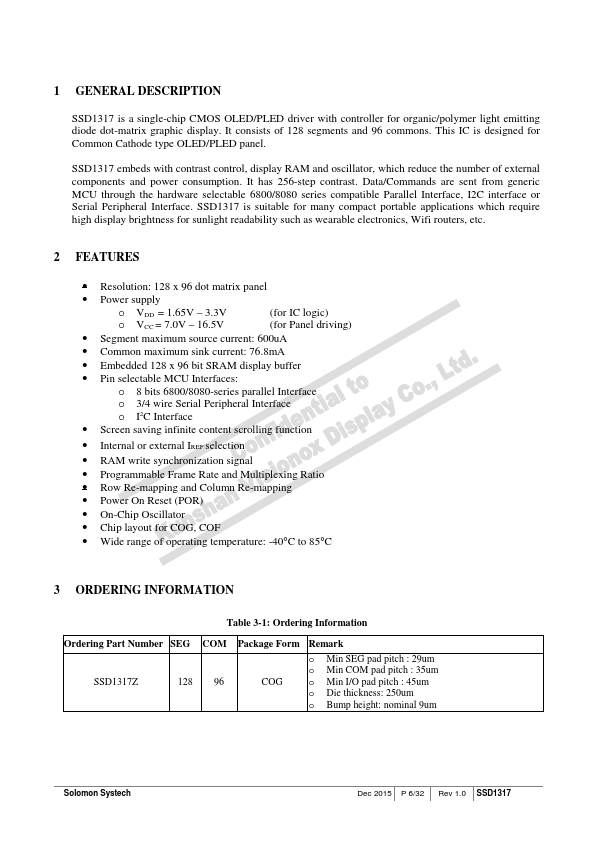

DESCRIPTION SSD1317 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display. It consists of 128 segments and 96 mons. This IC is designed for mon Cathode type OLED/PLED panel. SSD1317 embeds with contrast control, display RAM and oscillator, which reduce the number of external ponents and power consumption. It has 256-step contrast. Data/mands are sent from generic MCU through the hardware selectable 6800/8080 series patible Parallel Interface, I2C interface or Serial Peripheral Interface. SSD1317 is suitable for many pact portable applications which require high display brightness for sunlight readability such as wearable electronics, Wifi routers, etc. 2 FEATURES - Resolution: 128 x 96 dot matrix panel - Power supply o VDD = 1.65V - 3.3V (for IC logic) o VCC = 7.0V - 16.5V (for Panel driving) - Segment maximum source current: 600u A - mon maximum sink current: 76.8m A - Embedded 128 x 96 bit SRAM display buffer - Pin selectable MCU Interfaces: o 8 bits 6800/8080-series parallel Interface o 3/4 wire Serial Peripheral Interface o I2C Interface - Screen saving infinite content scrolling function - Internal or external IREF selection - RAM write synchronization signal - Programmable Frame Rate and Multiplexing Ratio - Row Re-mapping and Column Re-mapping - Power On Reset (POR) - On-Chip Oscillator - Chip layout for COG, COF - Wide range of operating temperature: -40°C to 85°C 3 ORDERING INFORMATION Table 3-1: Ordering Information Ordering Part Number SEG SSD1317Z Package Form Remark COG o Min SEG pad pitch : 29um o Min pad pitch : 35um o Min I/O pad pitch : 45um o Die thickness: 250um o Bump height: nominal 9um Solomon Systech Dec 2015 P 6/32 Rev 1.0 SSD1317 mand Decoder Oscillato r Display Timin g Generator Voltage Control Current Control 4 BLOCK DIAGRAM Figure 4-1: SSD1317 Block Diagram MCU Interface Graphic Display Data RAM (GDDRAM) Display...
