Solomon Systech SSD1333
SSD1333 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display. It consists of 528 segments and 176 commons output, supporting up to 176RGB x 176 dot matrix display. This IC is designed for Common Cathode type OLED/PLED panel.| Part No. | SSD1333 |
|---|---|
| Datasheet | SSD1333 Download |
| Manufacturer |  Solomon Systech |
| Description | OLED/PLED Segment/Common Driver |
| Buy | Stock & Price |

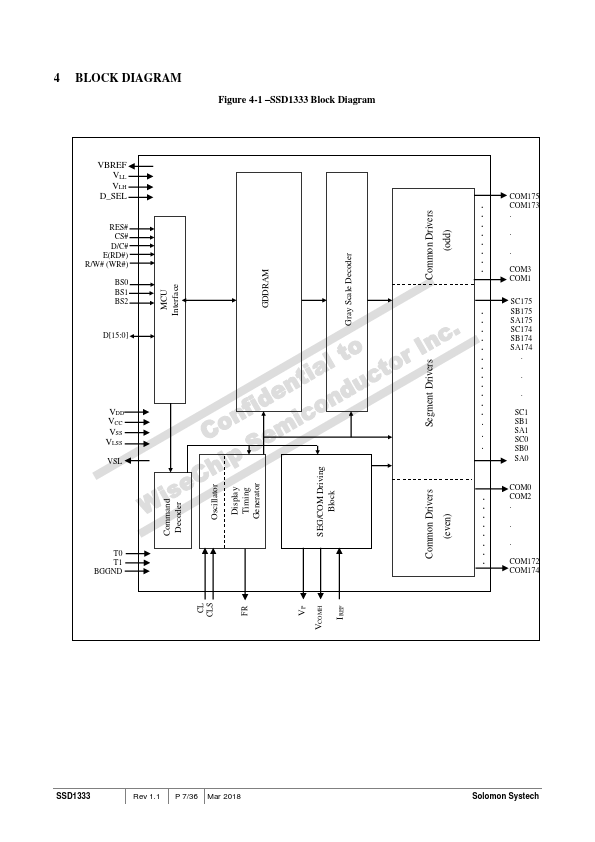

GENERAL DESCRIPTION
SSD1333 has embedded Graphic Display Data RAM (GDDRAM). Data/Commands are sent from general MCU through the hardware selectable 8, 16 bits 6800-/8080-series compatible Parallel Interface, I2C Interface, or Serial Peripheral Interface. It supports 256-step contrast and 65K color control. SSD1333 is suitable for portable applications such as wearable electronics with vivid color OLED display. 2FEATURES

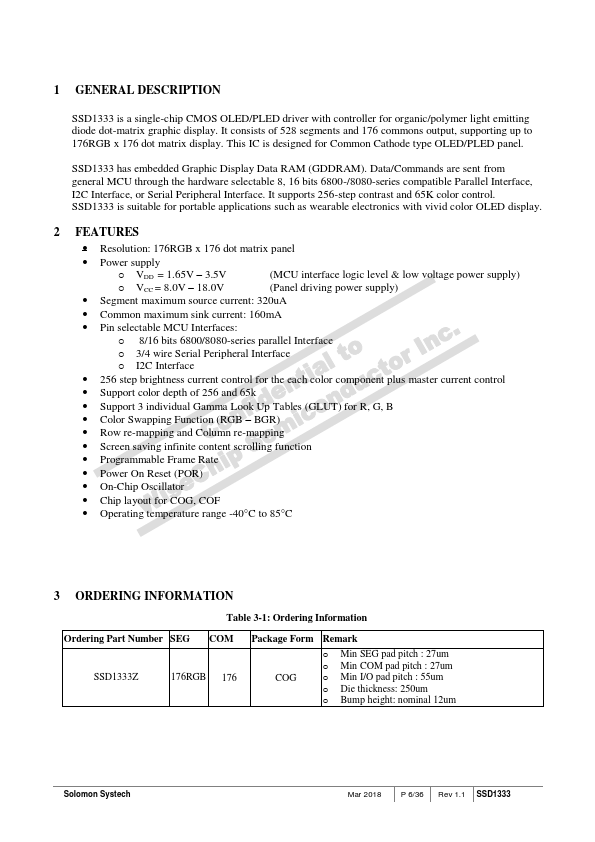

● Resolution: 176RGB x 176 dot matrix panel● Power supply o VDD = 1.65V – 3.5V (MCU interface logic level & low voltage power supply) o VCC = 8.0V – 18.0V (Panel driving power supply)
● Segment maximum source current: 320uA
● Common maximum sink current: 160mA
● Pin selectable MCU Interfaces: o 8/16 bits 6800/8080-series parallel Interface o 3/4 wire Serial Peripheral Interface o I2C Interface
● 256 step brightness current control for the each color component plus master current control
● Support color depth of 256 and 65k
● Support 3 individual Gamma Look Up Tables (...
