Solomon Systech SSD1339

The SSD1339 is a single-chip CMOS OLED/PLED driver with controller for organic/polymer light emitting diode dot-matrix graphic display system. It consists of 396 segments (132RGB), 132 commons and 2 smart icon lines. This IC is designed for Common Cathode type OLED panel.

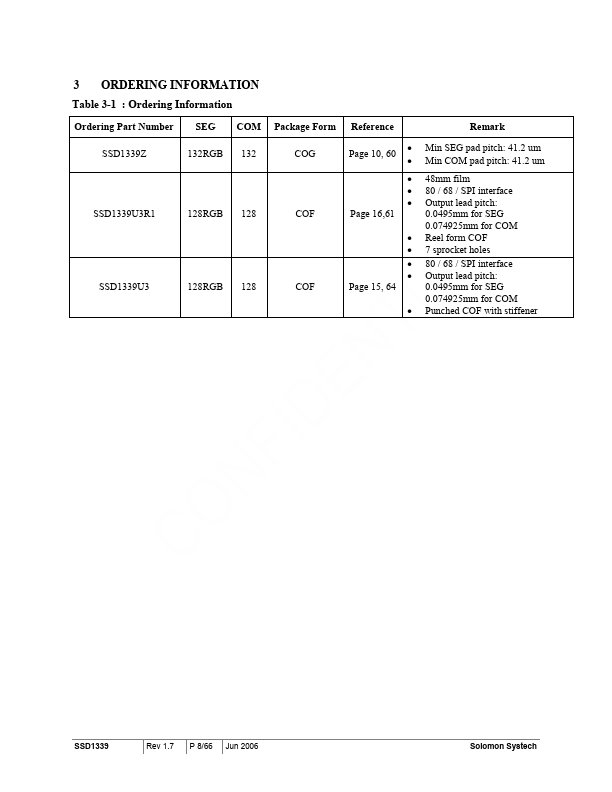

Part No.	SSD1339
Datasheet	SSD1339 Download
Manufacturer	Solomon Systech
Description	132RGB x 132 with 2 smart Icon lines Dot Matrix OLED/PLED Segment/Common Driver
Buy	Stock & Price

DESCRIPTION

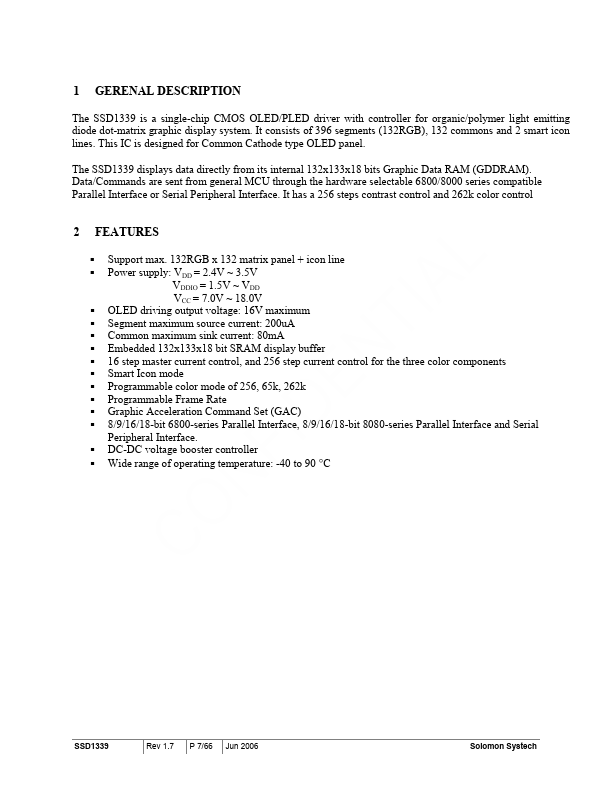

The SSD1339 displays data directly from its internal 132x133x18 bits Graphic Data RAM (GDDRAM). Data/Commands are sent from general MCU through the hardware selectable 6800/8000 series compatible Parallel Interface or Serial Peripheral Interface. It has a 256 steps contrast control and 262k color control 2

FEATURES

Support max. 132RGB x 132 matrix panel + icon line Power supply: VDD = 2.4V ~ 3.5V VDDIO = 1.5V ~ VDD VCC = 7.0V ~ 18.0V OLED driving output voltage: 16V maximum Segment maximum source current: 200uA Common maximum sink current: 80mA Embedded 132x133x18 bit SRAM display buffer 16 step master current control, and 256 step current control for the three color components Smart Icon mode Programmable color mode of 256, 65k, 262k Programmable Frame Rate Graphic Acceleration Command Set (GAC) 8/9/16/18-bit 6800-series Parallel Interface, 8/9/16/18-bit 8080-series Parallel Interface and Serial Peripheral Interface. DC-DC voltage booster controll...
